When designing a solar inverter, selecting the right MOSFET plays a crucial role in optimizing performance and efficiency. IRF 3710 One such highly efficient and reliable MOSFET, a 100V 57A MOSFET with excellent electrical characteristics. This article explores the features, applications, and benefits of the IRF3710 in solar inverters, ensuring a deeper understanding of why it is a preferred choice for engineers and designers.
Understanding IRF 3710 N-Channel MOSFET
The MOSFET 3710 is an N-channel MOSFET designed to handle high-power loads efficiently. With a drain-source voltage of 100V and a continuous drain current of 57A, it is widely used in power electronics applications, including solar inverters, motor drivers, and power supplies.
Key Specifications of IRF 3710:
- Type: N-Channel MOSFET
- Drain-Source Voltage (Vds): 100V
- Continuous Drain Current (Id): 57A
- Gate Threshold Voltage (Vgs): 2.0V – 4.0V
- Rds(on) Resistance: 23mΩ max
- Power Dissipation: 200W
- Package Type: TO-220
Why IRF 3710 is Ideal for Solar Inverters?
1. High Efficiency and Low Heat Generation
The IRF3710 is known for its low Rds(on) value of just 23mΩ, which minimizes conduction losses and improves efficiency. This is critical in solar inverters, where power conversion efficiency directly impacts energy output.
2. High Current Handling Capacity
With a 57A drain current, this 100V 57A MOSFET can handle high-power loads, making it suitable for high-wattage solar inverters.
3. Robust and Reliable Performance
The IRF 3710 offers excellent thermal stability and durability, ensuring long-term reliability in solar inverter circuits.
4. Cost-Effective Solution
Compared to other high-power MOSFETs, the MOSFET 3710 provides a balance between performance and affordability, making it an ideal choice for budget-conscious projects.
How IRF 3710 Enhances Solar Inverter Performance
A solar inverter’s efficiency depends significantly on the switching components used in its design. The IRF3710 excels in this regard due to its low gate charge, which ensures faster switching times and reduced power losses.
Thermal Management and Heat Dissipation
Efficient thermal management is crucial for solar inverters, as excess heat can reduce efficiency and lifespan. The IRF 3710 has a low thermal resistance and excellent heat dissipation, allowing for stable operation even under high power loads.
Reduced Energy Losses
Energy losses in power electronics primarily occur due to resistance and switching inefficiencies. With its low Rds(on) value, the 3710 N Channel MOSFET ensures minimal conduction losses, helping maximize solar inverter efficiency.
Compact and Durable Design

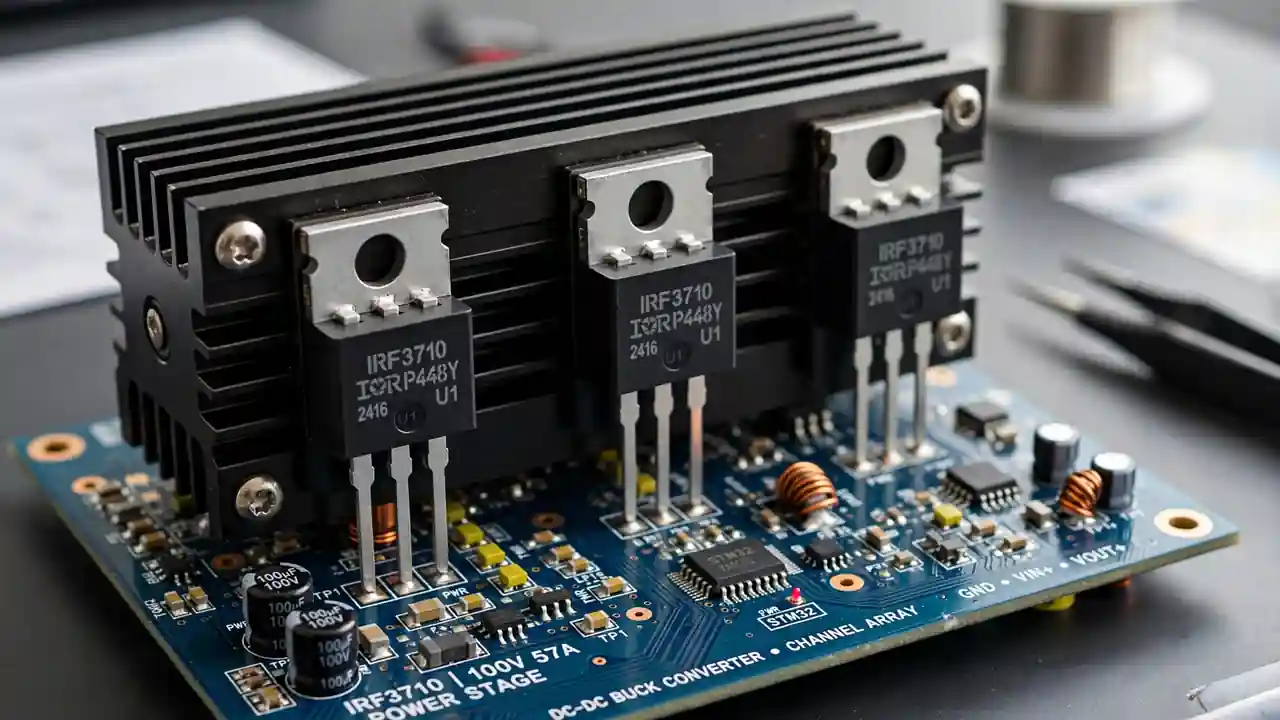

The IRF 3710 comes in a TO-220 package, making it easy to integrate into solar inverters while maintaining durability under varying environmental conditions.
Applications of IRF 3710 in Power Electronics
- Solar Inverters: Converts DC power from solar panels into AC power efficiently.
- Battery Chargers: Used in high-power battery charging circuits.
- Motor Control Circuits: Suitable for industrial motor drive applications.
- Power Supply Circuits: Helps regulate voltage and current in SMPS systems.
Final Thoughts
The IRF 3710 is a powerful N-channel MOSFET that is widely used in solar inverters due to its high efficiency, low Rds(on), and excellent current handling capabilities. If you are working on a solar inverter project, integrating the IRF3710 can help improve overall performance while maintaining cost-effectiveness. With its ability to handle 100V 57A, it remains one of the top choices for power electronics engineers.
By choosing the MOSFET 3710, you ensure a reliable and efficient power conversion solution for your solar energy applications. Whether you are designing a solar inverter, battery charger, or motor control circuit, this 3710 N Channel MOSFET provides the performance and reliability needed for efficient energy conversion
