0.1 Ohm 10W 5% Cement Resistor – Applications, Specs, and Buying Guide

I still remember the smell. Years ago, on a repair bench, a power supply came in dead — and the moment we powered it after a “quick fix,” a small resistor glowed orange, then black, then filled the room with that unmistakable burnt-phenolic stink. The culprit was a current-sense resistor someone had replaced with the wrong wattage.

At SunTech Mall, we supply original electronic components to repair shops and technicians across Pakistan, and the humble power resistor is one of our most reordered parts. We have seen what happens when it is right, and we have smelled what happens when it is wrong.

Here is the fear every technician quietly carries: power resistors fail violently. Unlike a small signal resistor that just goes open, a power resistor run past its limits can desolder itself, scorch the PCB, and take neighbouring components with it. One wrong part, and a simple repair becomes a board replacement.

In this guide, I will teach you everything about the 0.1 ohm 10W 5% cement resistor — what those three numbers really mean, the simple maths that keeps you safe, where this part earns its living, how to mount it so it survives, and how to buy a genuine one. By the end, you will look at any cement resistor and know instantly whether it belongs in your circuit. Let us begin.

A quick trust note: This is textbook electronics plus bench experience — no sponsored claims, no inflated specs. The maths here is Ohm’s law and the power formula, the same in every country. Where I give a rule of thumb, I will label it as one.

What You Will Learn in This Guide

• Decode what “cement resistor” actually means and how it is built
• Read the three numbers — 0.1 ohm, 10 watt, 5% — like a professional
• Apply the simple current and power maths that prevents smoke
• Discover where this part works: current sensing, inrush limiting, and more
• Mount and cool it so it lives a long, boring life
• Buy genuine parts and avoid the three classic mistakes

What a Cement Resistor Actually Is

Let us start with the name, because it confuses beginners.

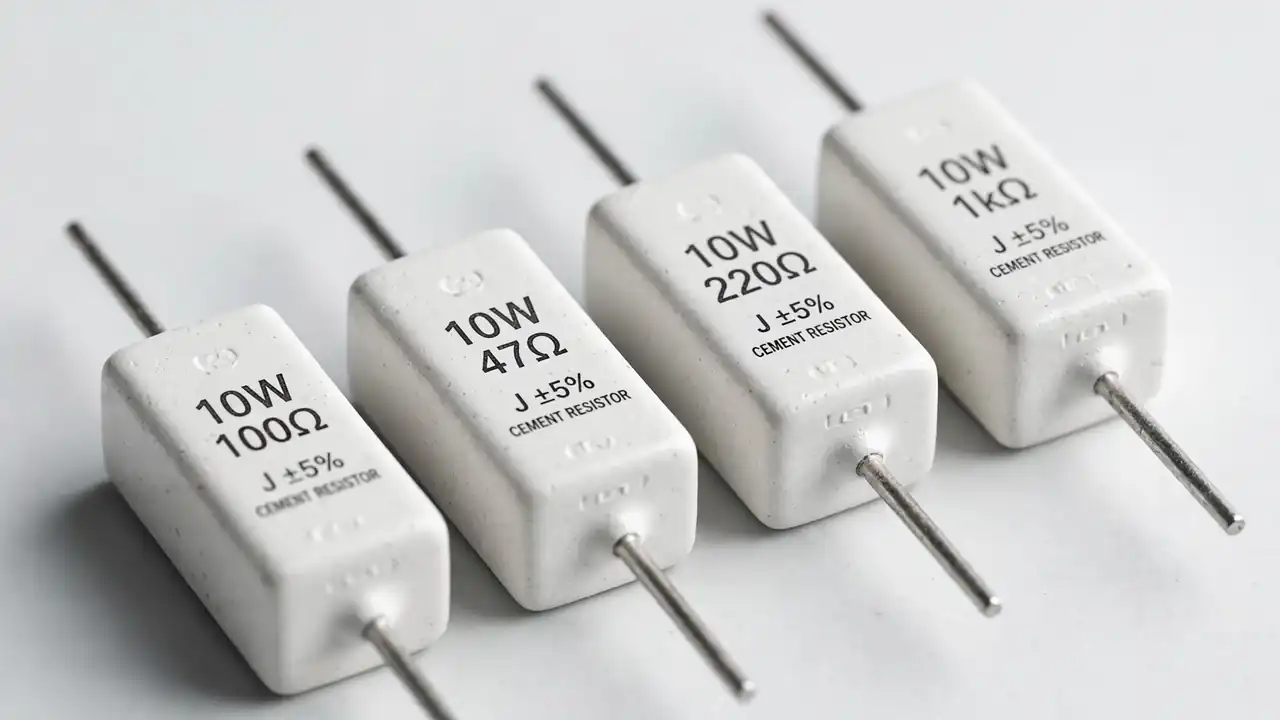

A “cement” resistor has nothing to do with construction cement. Inside the rectangular block is a wirewound element — resistance wire wound around a ceramic core — encased in a hardened ceramic filler. The coating is non-flammable, heat-resistant, and electrically insulating: the wire does the electrical work, and the ceramic armour handles the heat. That is why cement resistors survive in power supplies, motor drives, and inverter circuits where ordinary carbon-film resistors would burn.

The block shape is deliberate: large surface area for heat escape, sturdy axial leads. Most cement resistors are through-hole parts, usually stood slightly off the board so air circulates underneath.

Note: You may also see these called “ceramic encased” or “SQM/SQP series” resistors. Same family, same idea — wirewound element in a heat-proof ceramic case.

Reading the Three Numbers: 0.1 Ohm, 10 Watt, 5%

Every power resistor tells you three things. Here is how to read them.

0.1 ohm — the resistance. This very low value is the whole point: the resistor barely impedes current, dropping only a small voltage, which makes it ideal for measuring current without disturbing the circuit. By Ohm’s law (V = I × R), 5 amps through 0.1Ω drops just 0.5V — the circuit hardly notices, but you can read that 0.5V and know the exact current.

10 watt — the power rating. The maximum power the resistor can continuously turn into heat without damage, under standard conditions. Power follows P = I² × R: 10W = I² × 0.1Ω gives maximum continuous current I = √(10 / 0.1) = 10 amps. Remember that number — 10 amps is this resistor’s red line.

5% — the tolerance. Actual resistance can sit ±5% from the marked value — 0.095Ω to 0.105Ω. For current sensing, that bakes a ±5% uncertainty into your reading. Fine for protection and limiting; for precision measurement, step up to a 1% part.

The Maths That Keeps You Safe

Here is the part that separates technicians who guess from technicians who know.

We already found the headline number: 10 amps maximum continuous current at 10W and 0.1Ω. At that current, the voltage across the resistor is V = 10A × 0.1Ω = 1 volt, and the power is 10A² × 0.1Ω = 10 watts — right at the limit. Running any component exactly at its limit is asking for a short life.

So here is my rule of thumb, learned from too many warm benches: derate to 50-70% of the rated power in real designs. For a 10W resistor, design for 5-7W continuous — roughly 7-8 amps, not 10. The resistor runs cooler, drifts less with temperature, and survives the hot Pakistani summer inside a closed chassis.

Also respect surge vs continuous. A 10W cement resistor can typically survive brief overloads — a motor’s startup surge, for example — because its thermal mass absorbs short bursts. But “brief” means milliseconds to seconds, not minutes.

Bonus Tip: When replacing a burnt current-sense resistor, always ask why it burnt before soldering the new one. Sense resistors rarely die of old age — they die because something downstream (a shorted MOSFET, a failed capacitor) forced excess current through them. Fix the cause, not just the symptom. Keep quality capacitors and genuine semiconductors from our electronic parts section on your bench for exactly this reason.

Where This Part Earns Its Living

The 0.1Ω 10W cement resistor shows up in more places than most people realise. Here are its real jobs.

Current Sensing and Shunt Measurement

This is the number-one application. Placed in series with a load, the resistor converts current into a small, measurable voltage (remember: 1V at 10A). Control circuits — in power supplies, hybrid inverters, and motor drives — read that voltage to know the current, then regulate, limit, or shut down accordingly. It is the circuit’s ammeter, built from a five-rupee-style passive part.

Inrush Current Limiting

Big capacitors gulp current when power is first applied — that inrush can weld relay contacts or blow fuses. A low-value power resistor in series softens the blow, then a relay or thermistor bypasses it once the capacitors are charged. You will find this exact arrangement at the input of many UPS and inverter designs.

Power Supplies and Test Loads

Beyond sensing, low-ohm power resistors serve as dummy loads for testing and balancing elements. On a repair bench, they make superb test loads for low-voltage rails — just do the maths (P = I²R) before improvising, or the “test load” becomes the device under test.

Motor Control and Audio Amplifiers

In motor drives, the sense resistor feeds current data to the controller for torque control and stall protection. In audio power amplifiers, low-value resistors in the output stage provide emitter ballasting — forcing parallel output transistors to share current evenly instead of one hogging it all and dying. A blown amplifier often has a scorched 0.1Ω resistor next to a dead transistor pair.

Heat: The Silent Killer of Power Resistors

A 10W resistor doing 10W of work is a 10W heater that happens to be a resistor. Treat it like one.

Give it air. Never mount a cement resistor flat against the PCB or jammed against other parts. Stand it 5-10mm off the board so air flows around it, and keep heat-sensitive parts — electrolytic capacitors especially — a couple of centimetres away. A hot resistor next to a capacitor is a slow-motion double failure.

Respect the derating curve. The 10W rating assumes roughly 25°C ambient; as ambient temperature rises, safe power falls. Inside a closed inverter chassis in a Pakistani summer, 60-70°C ambient is realistic — another reason for the 50-70% design rule.

Consider a heatsink for continuous high power. If your design genuinely needs the full 10W continuous, bolting the resistor to a metal chassis or adding a clip-on heatsink dramatically extends its life. The cement body is insulating, but keep clearances sensible.

Note: A resistor that discolours, smells, or measures drifting resistance is telling you it has been overheated — even if it still “works.” Replace it. Heat-damaged resistors drift further over time and fail without warning.

Buying Guide: Getting a Genuine Part

Power resistors are cheap, which makes them a favourite target for counterfeiters. A fake “10W” resistor with thin wire inside will burn at 4W. Here is how to buy right.

Buy from a components specialist, not a general bazaar stall. A seller who stocks dedicated electronic parts and can tell you the series and tolerance is a seller who cares what is inside the ceramic. Check the current price on SunTech Mall and compare — absurdly cheap “deals” are a red flag.

Match all three numbers — 0.1Ω, 10W, 5% — and check the physical size fits the series. A genuine 10W cement resistor has a characteristic chunky body; if it looks suspiciously small, it probably is not really 10W.

Check the markings. Legitimate parts are clearly marked with value and wattage; blurry or missing markings suggest a relabelled part.

Buy a few spares. These are inexpensive, and having two or three on the bench means a repair never waits for a courier. Shops that stock common sense-resistor values turn jobs around same-day.

Three Mistakes That Release the Magic Smoke

Learn from other people’s burnt fingers.

Mistake 1: Replacing with a lower wattage “because it fits.” A 5W resistor in a 10W position will work for a while — then fail, usually at the worst moment. Wattage rating is a minimum requirement, not a suggestion. Going up in wattage is fine if it physically fits; going down is never fine.

Mistake 2: Ignoring tolerance in sensing circuits. A +5% actual value shifts a protection circuit’s trip point. Usually harmless — but in precision chargers, verify the trip point with a real load test after replacement.

Mistake 3: Forgetting that wirewound means inductive. Wound wire has inductance. At DC and 50/60Hz it does not matter; in high-frequency switching circuits it can cause ringing. For HF current sensing, non-inductive types exist — know which your circuit needs.

Frequently Asked Questions

Can I use a 0.1 ohm 10W resistor as a fuse?

No — and please do not try. A resistor is not a calibrated safety device. It may open, it may smoulder, or it may desolder itself and short something else. Use a real fuse or circuit breaker for protection, and let the resistor do its sensing or limiting job.

What is the maximum current for a 0.1 ohm 10W resistor?

I = √(P/R) = √(10/0.1) = 10 amps continuous maximum. For long life, design for 7-8A (the 50-70% derating rule). Brief surges above 10A are usually survivable but should not be routine.

How is this different from a 0 ohm resistor?

A 0.1Ω resistor has a deliberate, measurable resistance used for sensing and limiting. A 0 ohm resistor is essentially a jumper — a PCB trace in component form, used for routing and configuration. Different jobs, different parts.

Why is my cement resistor getting hot — is that normal?

Warm is normal; too-hot-to-touch for more than a second usually means you are near or over the rating. Measure the actual current, check your maths, and improve airflow or upsize the wattage. Discolouration means it has already been abused — replace it.

Can I parallel two 0.1 ohm resistors?

Yes. Two 0.1Ω resistors in parallel give 0.05Ω with double the power handling (20W total). This is a legitimate bench trick when you need lower resistance or higher power — just make sure both share current evenly by keeping the layout symmetrical.

Does the 5% tolerance matter for inrush limiting?

Rarely. Inrush limiting just needs roughly the right resistance — 5% either way changes the surge peak negligibly. Tolerance matters far more in current-sensing and protection-trip applications.

Where can I buy genuine 0.1 ohm 10W cement resistors in Pakistan?

From a dedicated components supplier — check the current price on SunTech Mall in our electronic parts section, or contact us at info@suntechmall.com / +92 306 2244820 for bulk repair-shop quantities.

Final Thoughts

It is funny how the smallest parts teach the biggest lessons. A 0.1 ohm resistor looks like nothing — a little ceramic brick — yet it stands guard over thousands of rupees of MOSFETs and controllers, quietly measuring every amp that flows.
