LM7812 POSITIVE VOLTAGE REGULATOR TO220
The LM7812 voltage regulator is a reliable positive voltage regulator LM 7812 designed to deliver a stable 12V output for various electronic applications. Encased in the LM 7812 TO-220 package, it provides efficient heat dissipation and high current-handling capabilities, making it ideal for power supply circuits. This linear voltage regulator ensures minimal ripple and low noise, protecting sensitive components from voltage fluctuations. Commonly used in solar inverter systems, it enhances power stability and efficiency, ensuring smooth energy conversion and reliable operation in renewable energy applications.

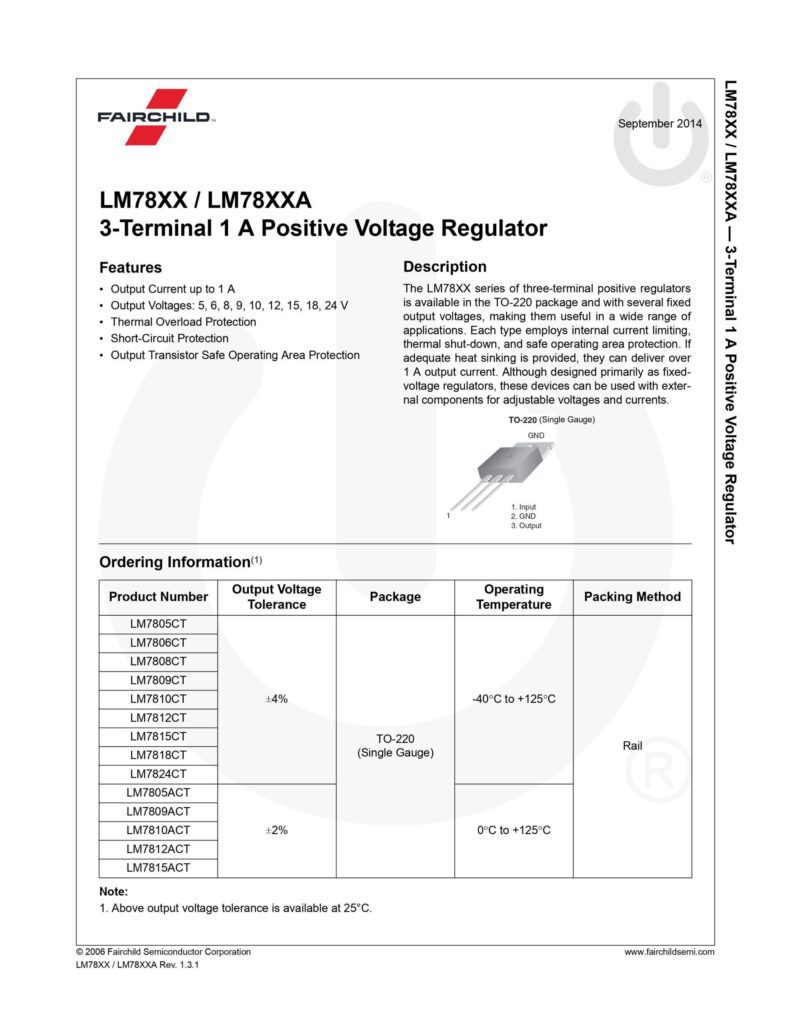

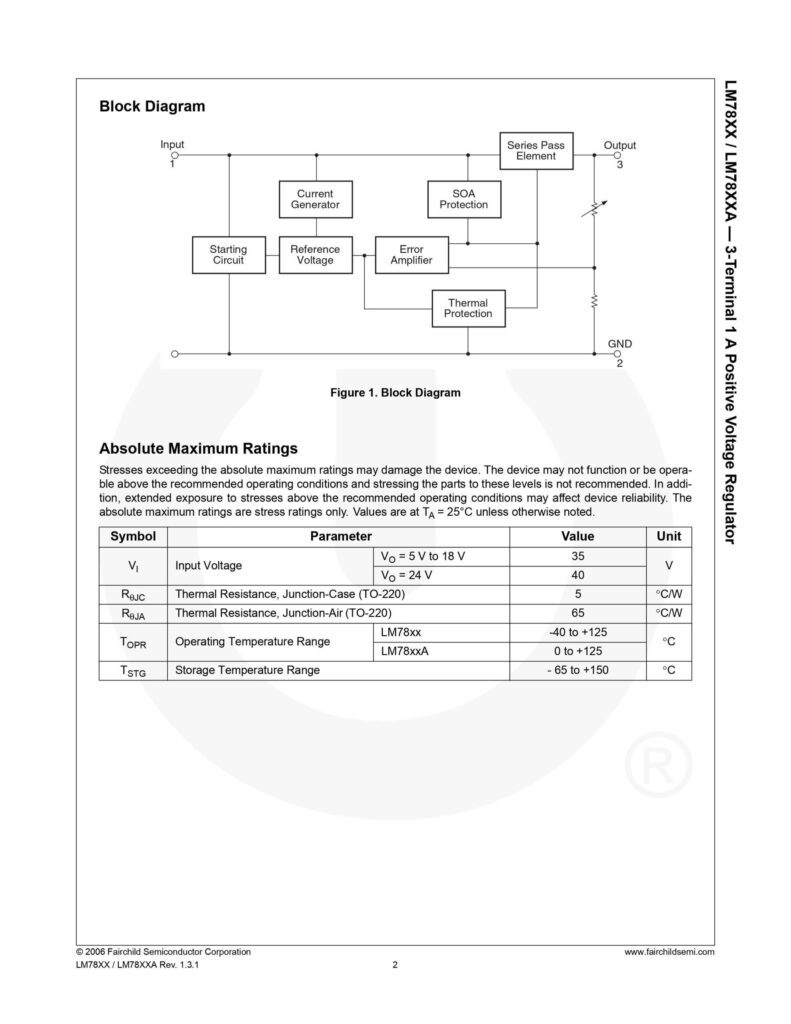

Built for durability, the LM7812 for solar inverter offers overload, short-circuit, and thermal protection, making it a robust choice for power regulation. Its TO-220 package allows for easy mounting and effective heat management, improving performance in high-power applications. The LM7812 datasheet provides detailed specifications, enabling seamless integration into circuit designs. Whether for industrial, automotive, or renewable energy systems, the LM7812 voltage regulator ensures consistent 12V power output, optimizing overall efficiency and reliability in electronic devices and power management solutions.
Features
- Input Voltage Range: 14V to 35V
- Output Voltage Range: 11.75V – 12.25V DC
- Output Current (Typical): 1A
- Peak current: 2.2A
- Dropout voltage: 2V
- Available in TO-252, TO-220 & TO-263 Package
- The Output current is 1.5 Ampere
- 12V fixed and accurate output voltage
- Immediate short circuit shutdown function
- Immediate over heat shutdown function
- Low price
- Authentic to use in commercial devices
- Low standby current only 8mA
- Fixed voltage linear regulator78xx Pin-out
- Output Voltage Tolerance of 5%
- Internal thermal overload protection
- Internal Short-Circuit Limited
- No External Component
