LM339 Quad Differential Comparator Dip-14

LM339 QUAD DIFFERENTIAL COMPARATOR PDIP-14

The LM339 comparator is a high-performance quad differential comparator designed for precise voltage monitoring and control. Housed in a PDIP-14 package, it operates efficiently over a wide voltage range, making it an excellent choice for solar inverters and other power regulation applications. The low-power comparator LM 339 ensures minimal energy consumption while delivering accurate signal processing, threshold detection, and voltage sensing, making it an essential component in power management circuits.

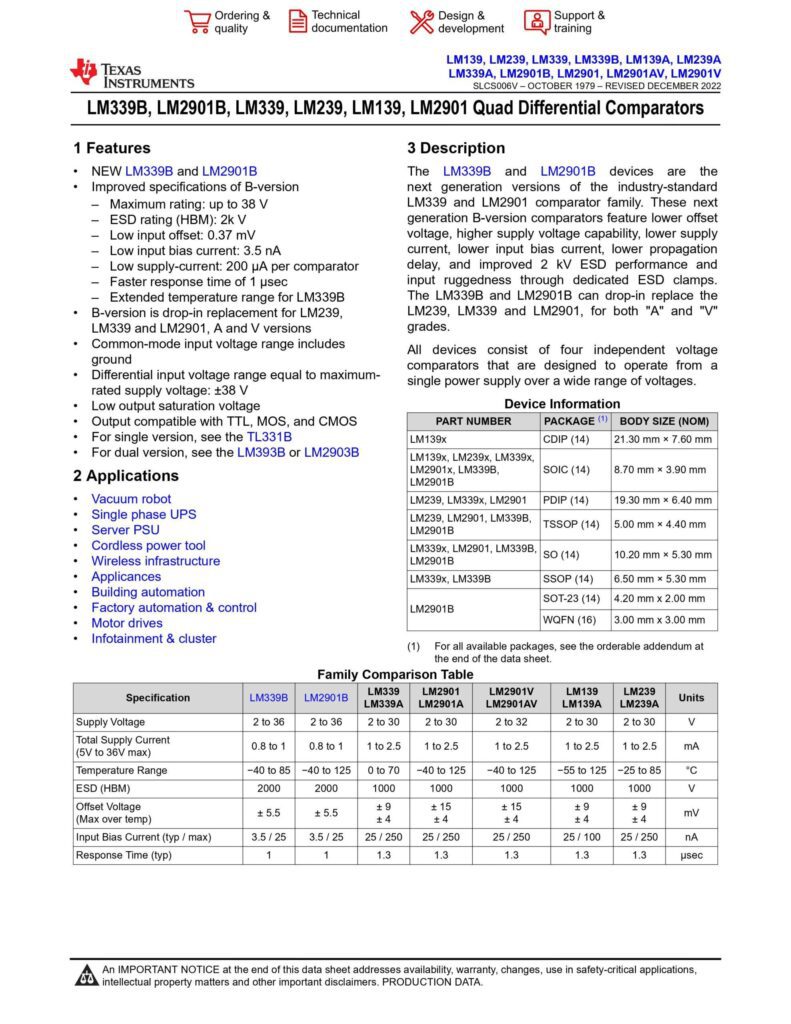

The LM339 for solar inverter applications is widely used in LM 339 circuit applications such as zero-crossing detection, power supply monitoring, and signal conditioning. Its ability to function with single and dual power supply configurations makes it a versatile choice for various designs. With fast response times and stable performance, it enhances the efficiency of renewable energy systems. Its robust design ensures reliable operation even in demanding environments. For complete specifications and electrical characteristics, refer to the LM339 datasheet to optimize your circuit performance.

Specifications

• Model: LM 339
• Type: Quad Differential Comparator
• Package: PDIP-14
• Supply Voltage: 2V to 36V
• Offset Voltage: ≤2mV (typical)
• Output Type: Open Collector
• Response Time: 1.3µs (typical)
• Low Power Consumption: 0.25mA per comparator
• Operating Temperature: -40°C to +85°C
