K75T60A 600V 75A IGBT TO 247
Rs350
Description
If your board needs a k75t60a 600v 75a igbt, and the old part is a 600V 75A IGBT in a TO-247 package with a built-in antiparallel diode, this is the part to order. It is a TrenchStop DuoPack IGBT that switches high power with low loss, built for solar inverters, UPS systems, and frequency converters. It does not fit jobs that need more than 600V, more than 75A of steady current at a hot case, a MOSFET instead of an IGBT, or a different package. Check the checks below before you order, so the voltage, the current, the gate drive, the cooling, and the pins all match your board.
This is an original, high-quality part.
What it does
An IGBT is a switch that a small gate signal turns on and off, and that then carries large power on its main path. This one is a DuoPack, which means the antiparallel diode is built into the same TO-247 body — the diode carries the reverse current when an inductive load (a motor, a transformer, a chopper coil) pushes current back, so the switch does not have to fight it alone. At 75A it drops only 1.5V typical, so it wastes little power as heat for the current it carries — but 75A at 1.5V is still over 100W of heat, which is why this part needs a proper heatsink and airflow. Without cooling it will overheat and fail, even though the part itself is rated for it.
The part switches fast — turn-on delay 33 ns, turn-off delay 330 ns — and it survives a short circuit for 5 microseconds, which gives the protection circuit time to shut the drive down. That ruggedness is what makes it fit inverter and UPS work, where a fault can put the full DC bus across the switch. It is not a MOSFET: it needs a proper gate drive (15V for full turn-on) and it must never be driven like a logic-level part.
Key features
- K75T60A IGBT, 600V, 75A, TrenchStop Low Loss DuoPack (Infineon IKW75N60T)
- TO-247 package, 3 leads, through hole
- Collector-emitter voltage 600V
- Collector current 80A at 25 °C case; 75A at 100 °C case
- Pulsed collector current 225A
- Very low saturation voltage: 1.5V typical at 75A
- Built-in soft, fast-recovery antiparallel EmCon HE diode (121 ns typical recovery)
- Short-circuit withstand 5 µs; maximum junction temperature 175 °C
- Power dissipation 428W at 25 °C case
Checks before you order
- Part code: the old part must be a K75T60A, marked K75T60 on the body (the sheet marking — see the gates note). If your old part shows a different code, stop and check your board list again. A G40T120 IGBT is a 1200V 40A part, not a swap for this 600V 75A one. Do not judge by the TO-247 body alone — other makers sell a 600V 75A IGBT under a similar code, and it is a different part with different figures.
- Voltage: the collector-emitter voltage on your circuit must stay at or below 600V, and the gate drive must stay inside ±20V. Above those limits, this part is the wrong pick.
- Current and heat: the steady current must stay at or below 75A at a 100 °C case — the 80A figure only counts at a 25 °C case, so check the derating for your real cooling. Work out the heat from your real current and the saturation voltage (1.5V typical at 75A) and keep the total power inside the 428W limit at a 25 °C case, with a heatsink and airflow that fit the job.
- Gate drive: drive the gate at 15V for full turn-on, and check the threshold (4.1V to 5.7V) against your driver. A weak gate drive leaves the part half on, and it will run hot.
- Device type: your board must need an IGBT, not a MOSFET and not a plain transistor. An IGBT and a MOSFET with the same body are not swaps for each other.
- Pin layout: the pins are Gate (1), Collector (2, also the tab), Emitter (3). Fit the new part exactly the way the old part sat, and check the lead layout against the datasheet figure for this part before you solder. An IGBT put in with the wrong leads will not work and can fail at once.
Specifications

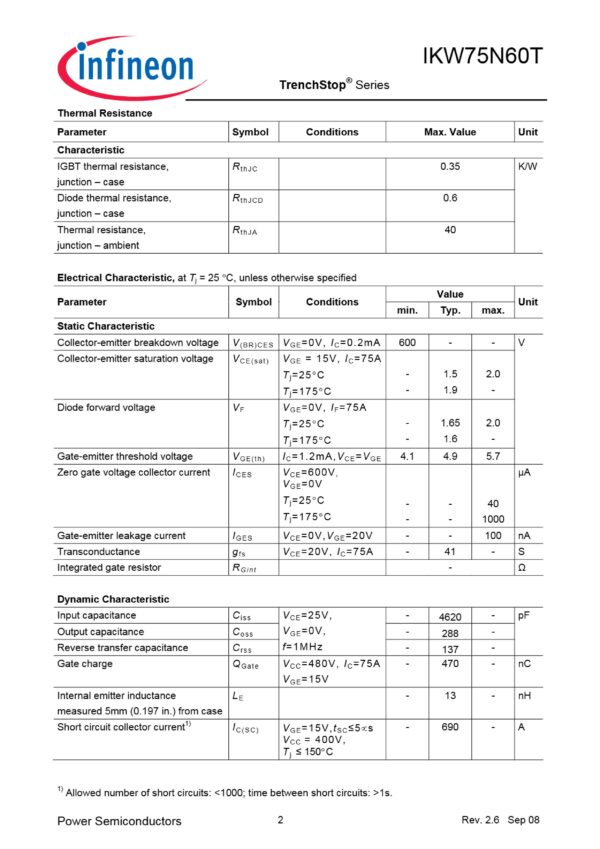

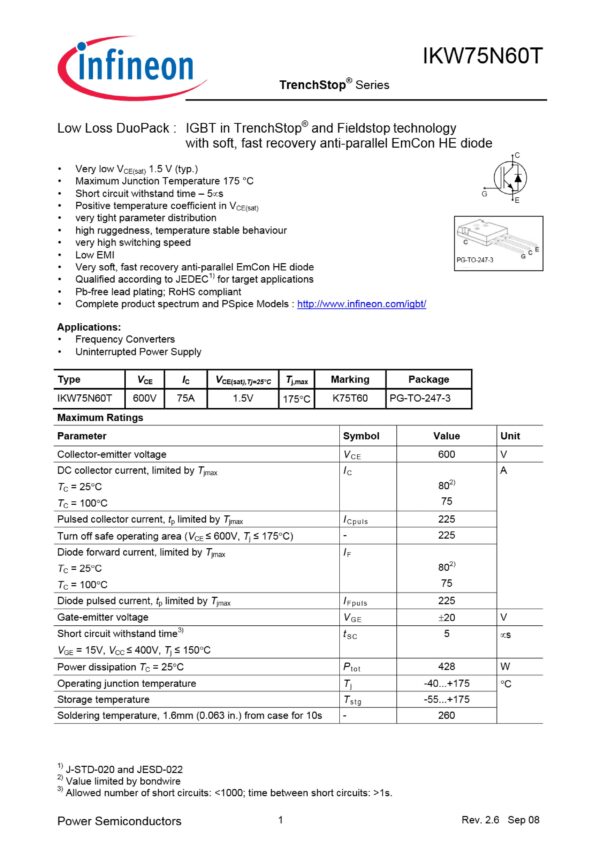

All figures below are from the official datasheet for this part (Infineon IKW75N60T). No figure here was guessed.
| Type | Low Loss DuoPack IGBT, TrenchStop and Fieldstop, with antiparallel diode |
| Package | PG-TO247-3 (TO-247, 3 leads), through hole |
| Marking | K75T60 (per the sheet; check the stocked part — see the gates note) |
| Collector-emitter voltage | 600 V |
| DC collector current | 80 A at 25 °C case; 75 A at 100 °C case |
| Pulsed collector current | 225 A |
| Gate-emitter voltage | ±20 V |
| Short-circuit withstand time | 5 µs |
| Power dissipation | 428 W at 25 °C case |
| Saturation voltage, typ / max | 1.5 V / 2.0 V at 75 A, 15 V gate, 25 °C |
| Diode forward voltage, typ / max | 1.65 V / 2.0 V at 75 A, 25 °C |
| Gate threshold voltage | 4.1 V to 5.7 V |
| Total gate charge, typ | 470 nC at 480 V, 75 A, 15 V gate |
| Switching, typ, 25 °C | Turn-on delay 33 ns; rise 36 ns; turn-off delay 330 ns; fall 35 ns; total loss 4.5 mJ |
| Diode recovery time, typ | 121 ns at 25 °C |
| Thermal resistance, junction to case | 0.35 °C/W (IGBT); 0.6 °C/W (diode) |
| Junction temperature | −40 °C to +175 °C |
| Pin order | Gate (1), Collector (2 or TAB), Emitter (3) |
Other names for the same part (good to know)
Shoppers and repair techs call this same part by a few names. K75T60A is the code on this listing. K75T60 is the code printed on the body, per the Infineon sheet. IKW75N60T is the full Infineon order code for this part. 600V 75A IGBT is the name buyers use when the ratings are what matters. If your board list calls for a 600V 75A IGBT in a TO-247 body with a built-in diode, this page is the right match. Do not judge by the code alone — check the voltage, the current, the gate drive, and the maker too, because a similar code from another maker is a different part.
Frequently Asked Questions
Is K75T60A the same as IKW75N60T?
Yes. IKW75N60T is the full Infineon order code, and the body is marked K75T60. The listing name K75T60A is the code buyers use for this part. The figures in the table above are the IKW75N60T figures.
What voltage and current can this part handle?
Up to 600V collector-emitter and up to 75A of steady collector current at a 100 °C case (80A at a 25 °C case), with short pulses up to 225A and total power up to 428W at a 25 °C case. Stay inside all of those limits at the same time, and derate the current as the case gets hotter.
Which pin is which?
Pin 1 is the Gate, pin 2 is the Collector (also joined to the mounting tab), and pin 3 is the Emitter. Check the stocked part before fitting, as the gates note says.
What gate voltage does this part need?
Drive the gate at 15V for full turn-on. The gate threshold sits between 4.1V and 5.7V, and the gate must never go past ±20V.
Can I use a MOSFET in place of this IGBT?
No. An IGBT and a MOSFET switch in different ways and need different gate drives, even when they share the same body. Match the device type from your board list, not just the body size.
What is the price of this part?
Check the live price on the website. The price shown on the product page is the current one.
Use note kept from the old page: this part was listed before as a K75T60A IGBT, a high-efficiency 600V IGBT with a 75A current rating, in a TO-247 package, for demanding power applications, for solar inverters and industrial power systems, with low saturation voltage and high-speed switching, for solar power conversion, renewable energy systems and industrial automation — and that use still stands.
You can view and download the datasheet for this part from the Download button on this page.
