Hybrid Inverter System Card 101-014248-002

Hybrid Inverter System Card 101-014248-002

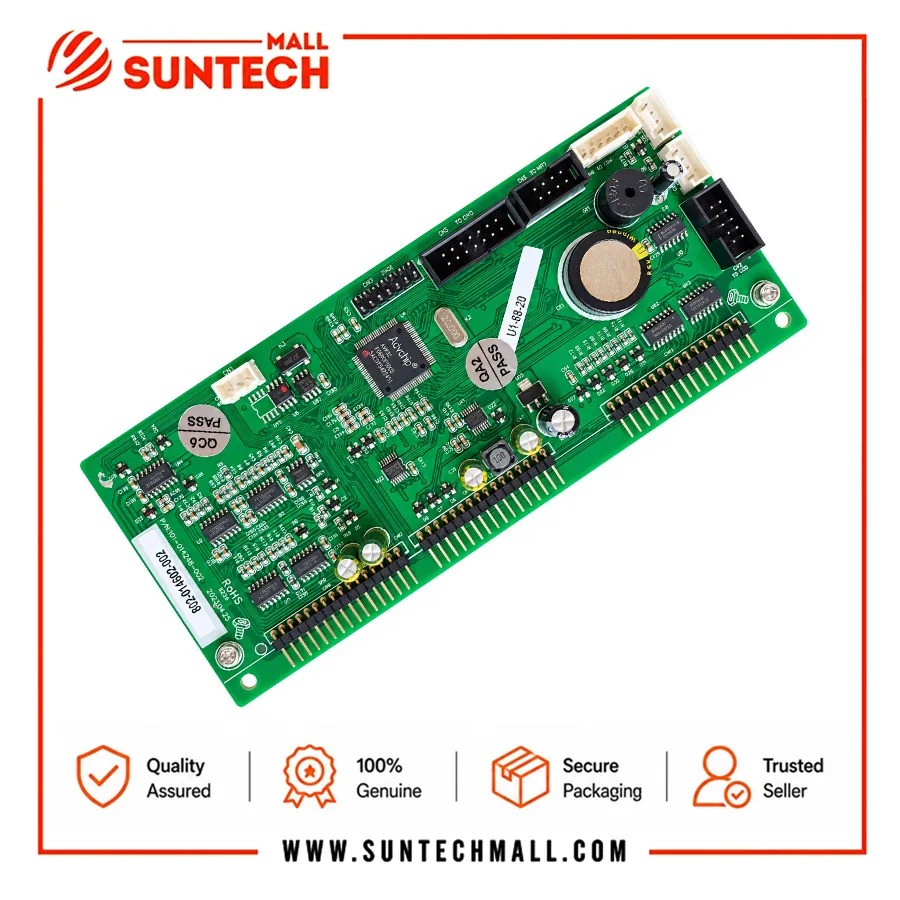

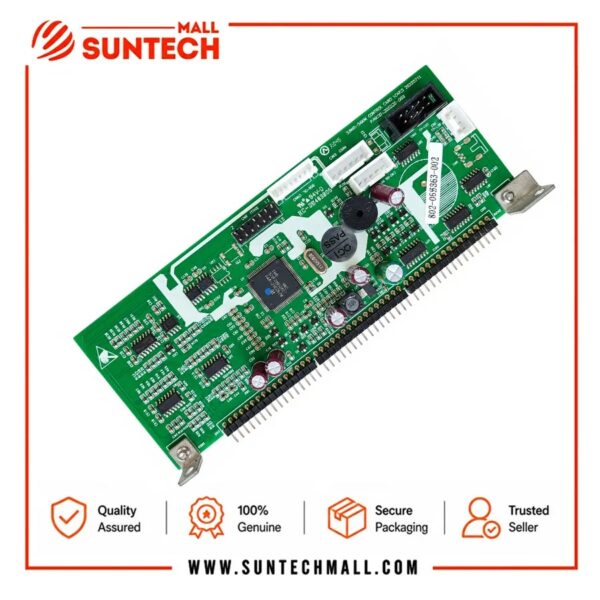

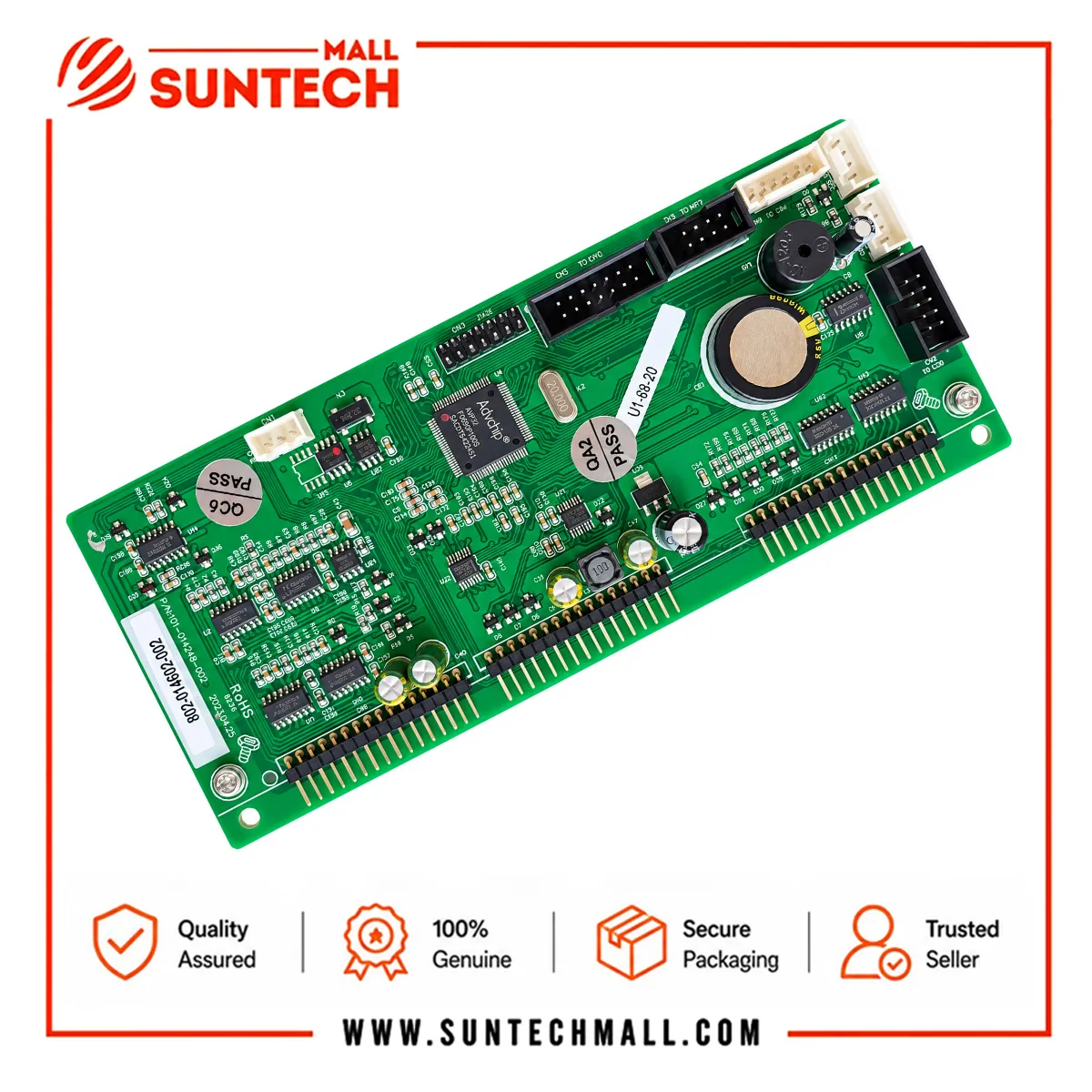

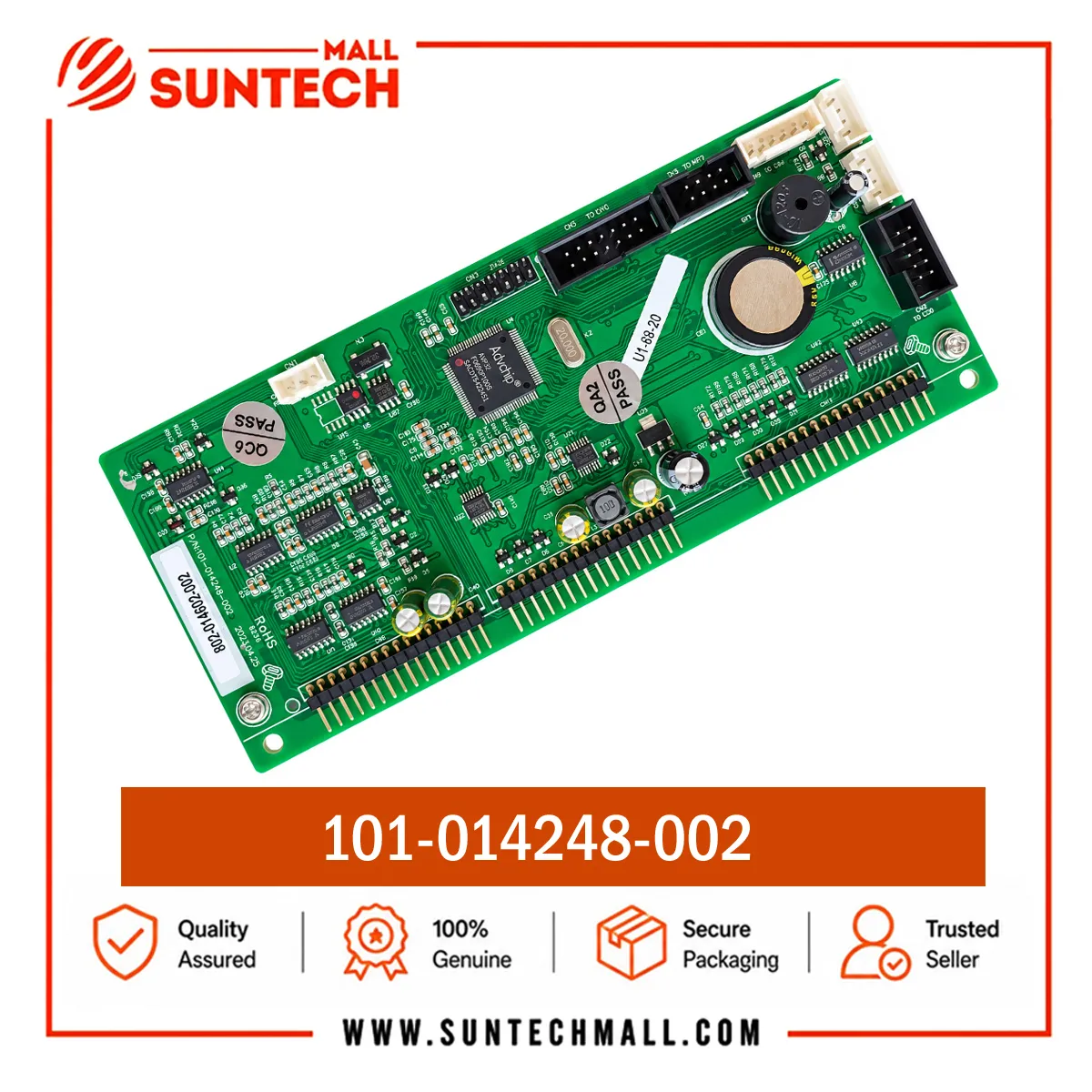

The Hybrid Inverter System Card 101-014248-002 is a replacement system and control board designed for compatible Voltronic/Axpert VM II 5.5kW hybrid solar inverter platforms. It supports the inverter’s essential power management functions, including solar input control, battery charging, DC-to-AC power conversion, AC input management, system monitoring and protection. It is suitable for professional solar inverter repair where the original PCB number, connectors and board layout match.

The compatible VM II 5.5kW inverter platform operates with a 48V battery system and delivers up to 5.5kW pure sine wave AC power for residential, office and backup energy applications. The platform also supports high-voltage MPPT solar charging and 230V AC output, allowing solar panels, batteries and utility power to work together efficiently in a hybrid power system.

When installed in the correct inverter with a properly sized battery bank and solar array, the system can power common loads such as LED lights, ceiling fans, televisions, computers, refrigerators, freezers, washing machines, small water pumps and suitable inverter air conditioners. The total continuous load and the starting surge of motors or compressors must always remain within the inverter’s rated limits.

Product Features

• 5.5kW inverter support
• 48V battery platform
• Pure sine output
• High voltage MPPT
• Hybrid power management
• Battery charging control
• AC input management
• Solar input control
• System protection functions
• Professional repair replacement
