Hybrid Inverter System Card 098-050001-00g

Hybrid Inverter System Card 098-050001-00g

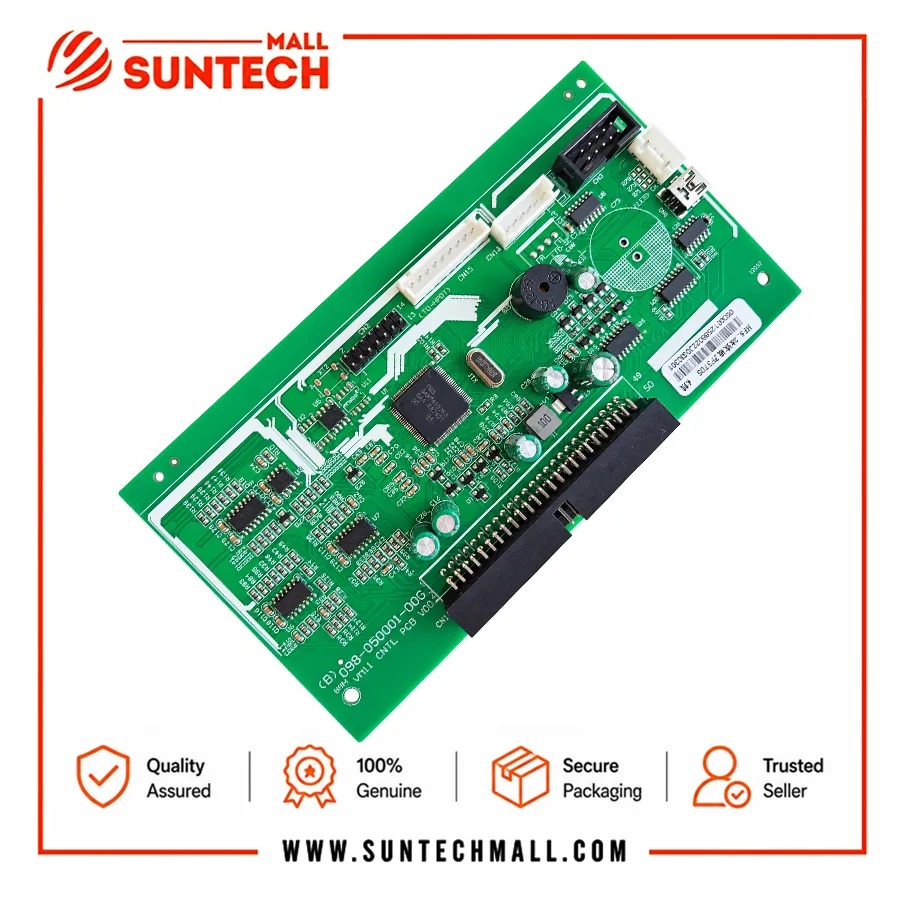

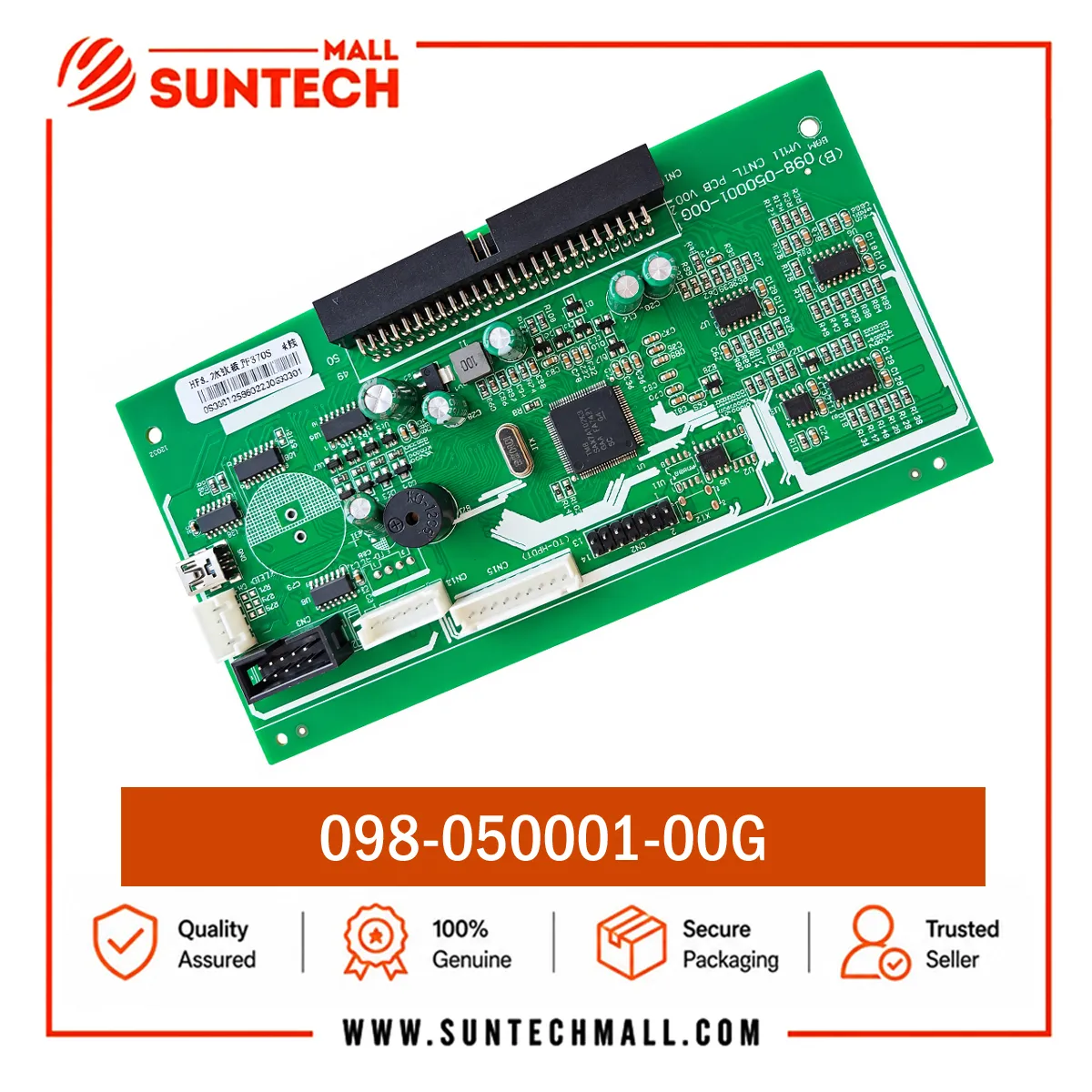

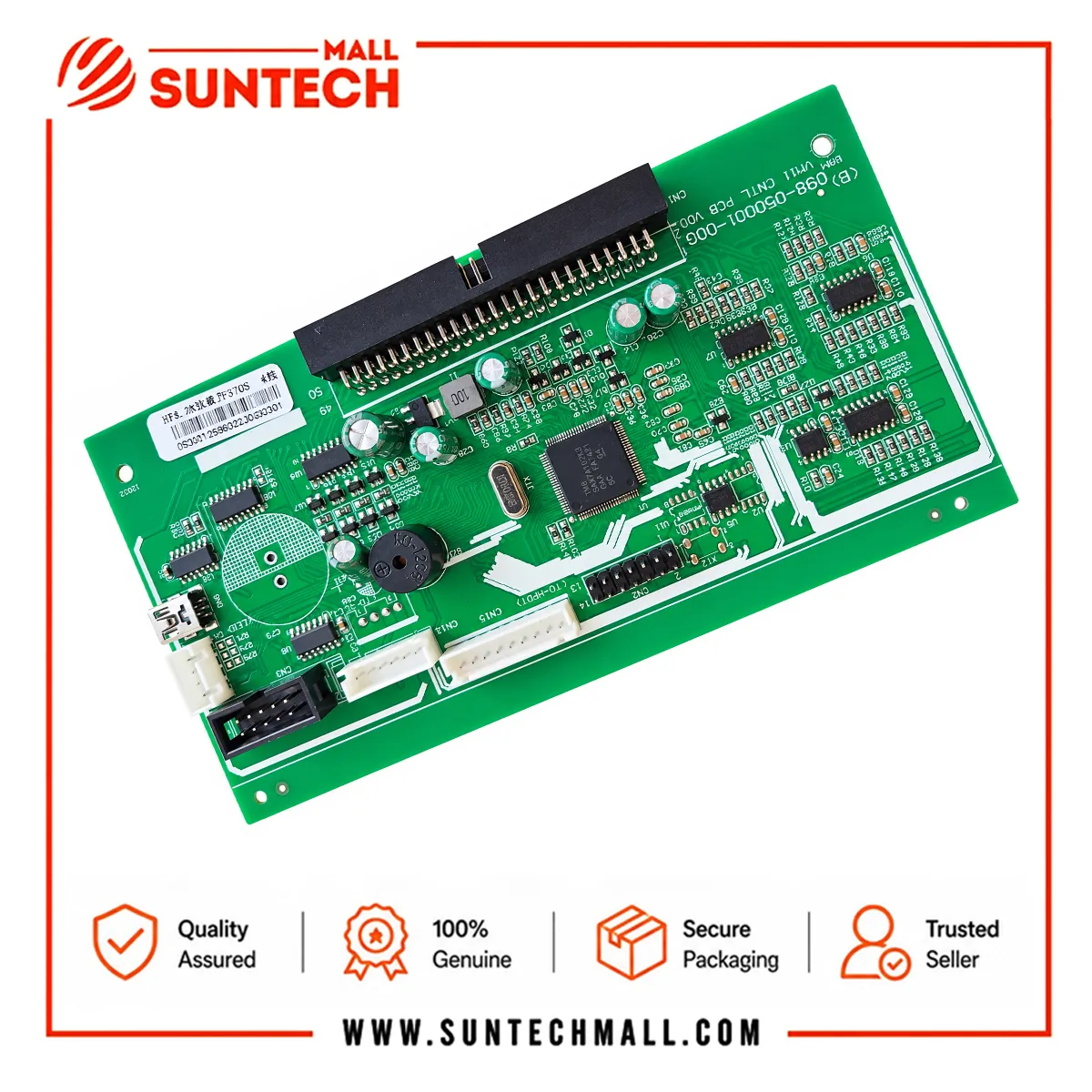

The Hybrid Inverter System Card 098-050001-00G is a replacement control and system board for compatible Voltronic-based VM II Plus 5.5kW 48V hybrid solar inverter platforms. It is designed to support the inverter’s main power management functions, including battery operation, solar energy conversion, charging control, AC input and output management, system monitoring and protection functions. This board is suitable for professional inverter repair and replacement where the original PCB number and connector layout match.

The compatible VM II Plus 5.5kW 48V inverter platform provides up to 5500W pure sine wave output and works with a 48V battery bank. The inverter family also supports high-voltage MPPT solar charging, with up to approximately 6000W solar array capacity and a 120–450V MPPT operating range on commonly documented versions. This makes the system suitable for residential solar backup, off-grid power systems and hybrid power applications.

When installed in the correct inverter and supported by a properly sized battery and solar system, it can power common household loads such as LED lights, fans, televisions, computers, refrigerators, freezers, washing machines, microwave ovens, small water pumps and suitable inverter air conditioners. The combined continuous load should remain within the inverter’s rated output, and appliances with motors or compressors must also meet the inverter’s starting-surge limits.

Product Features

• 5.5kW inverter support
• 48V battery system
• Pure sine output
• Hybrid power control
• MPPT solar support
• Battery charging control
• AC input management
• AC output control
• Solar power management
• System protection control
• Inverter repair replacement
• Voltronic platform compatible

usage: double chopper non bms

pv 6000.pv7000.pv7200
