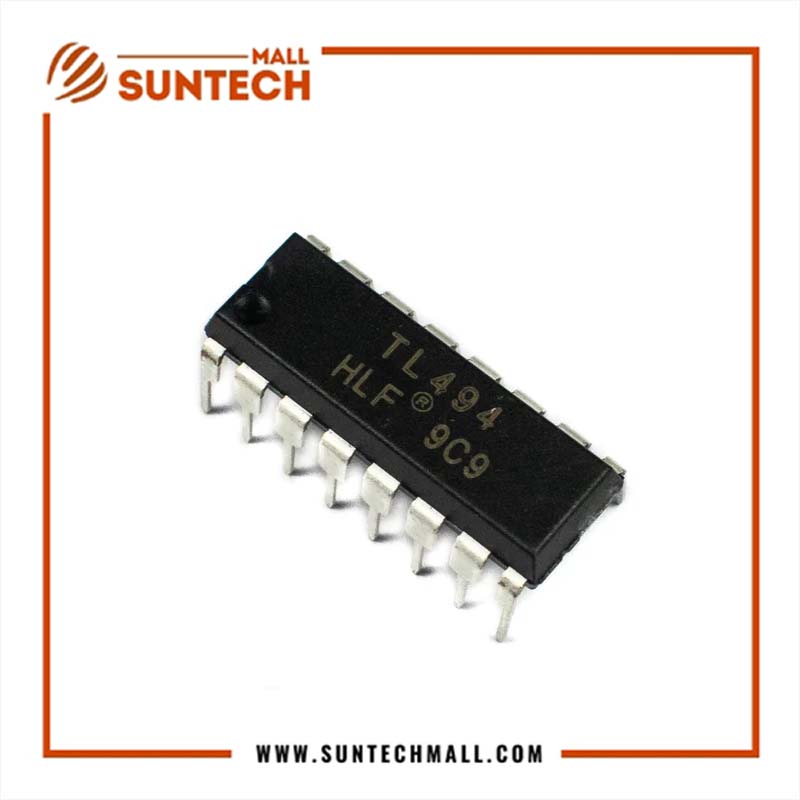

TL494 PWM CONTROLER IC DIP-16
The TL494 is a highly efficient PWM controller IC designed for precision power regulation in solar inverter and power supply applications. This DIP-16 PWM IC enables accurate voltage and current control, ensuring reliable operation. As a pulse width modulation IC, it optimizes energy conversion, making it ideal for high-efficiency PWM controller designs in renewable energy systems.

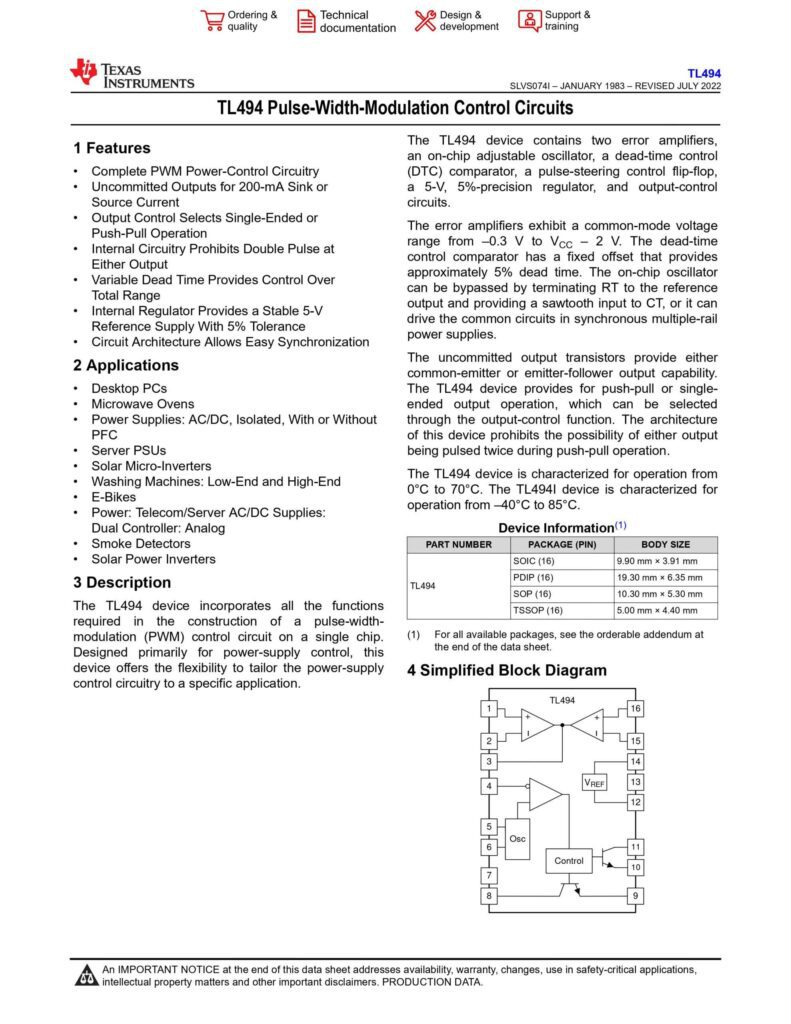

The TL494 for solar inverter enhances performance with its advanced pulse width modulation IC technology. Its DIP-16 PWM IC configuration supports multiple topologies, including push-pull and half-bridge converters. This solar inverter IC provides excellent load regulation, reducing energy losses for maximum efficiency. The TL494 datasheet details its wide input voltage range, internal error amplifiers, and adjustable duty cycle, making it a top choice for industrial and renewable energy applications requiring a reliable high-efficiency PWM controller.
With its DIP-16 package, the TL494 is easy to implement in PCB designs, providing stable operation and enhanced thermal performance. Its low standby power consumption, overcurrent protection, and high-speed switching capabilities ensure optimized efficiency and durability in solar energy systems, industrial power supplies, and battery chargers.
Features
- Complete PWM Power-Control Circuitry.
- Uncommitted Outputs for 200-mA Sink or Source Current.
- Output Control Selects Single-Ended or Push-Pull Operation.
- Internal Circuitry Prohibits Double Pulse at Either Output.
- Variable Dead Time Provides Control Over Total Range.
- Internal Regulator Provides a Stable 5-V Reference Supply With 5% Tolerance.
- Circuit Architecture Allows Easy Synchronization.
