UC3843BN CURRENT MODE PWM IC DIP-8
The UC3843BN is a current mode PWM IC designed for high-performance power applications, ensuring precise control and efficiency. This DIP-8 PWM IC is widely used in solar inverter systems, offering reliable switching and regulation. As a pulse width modulation IC, it enhances power conversion, making it ideal for high-efficiency PWM controller applications in energy-efficient designs.

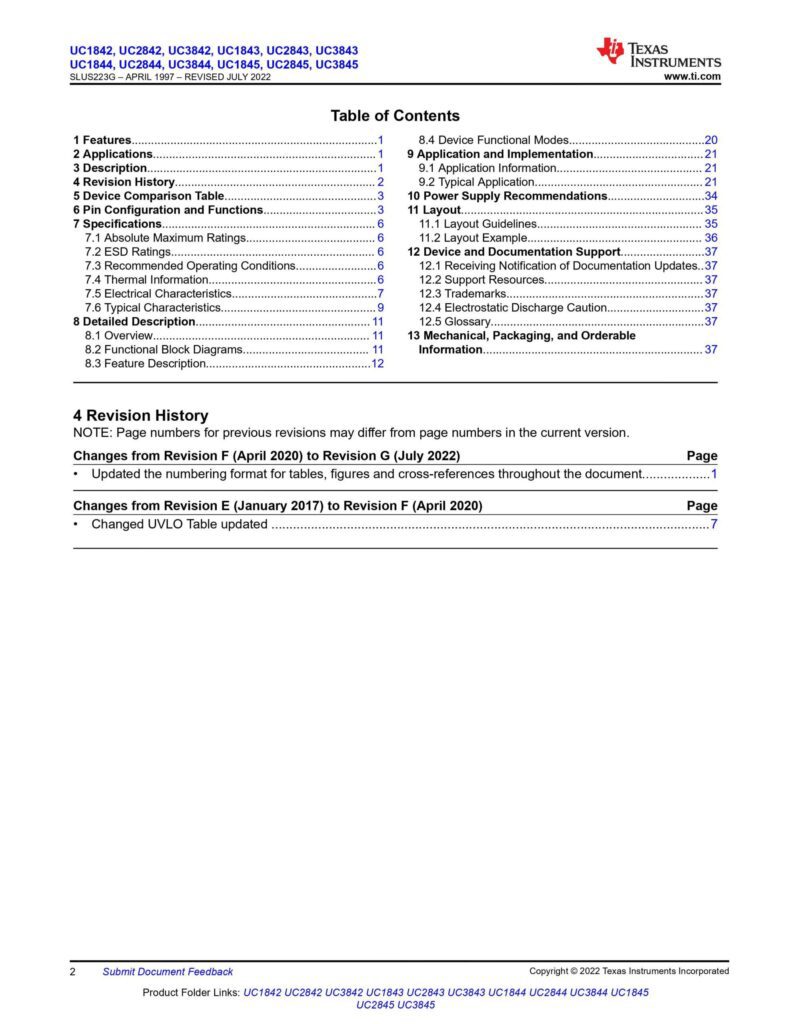

Engineered for stability and fast response, the UC3843BN for solar inverter improves energy management with advanced pulse width modulation IC technology. This solar inverter IC supports various high-efficiency PWM controller applications, minimizing power losses. Its DIP-8 PWM IC packaging allows for easy integration in compact circuits. The UC3843BN datasheet highlights its low startup current, wide voltage range, and robust performance, making it a preferred choice for solar inverter and power supply applications requiring precise voltage and current regulation.
The DIP-8 package makes it easy to integrate into PCB designs, while its low startup current, undervoltage lockout (UVLO), and short-circuit protection enhance the overall safety and durability of power circuits. The UC 3843BN is widely used in solar inverters, LED drivers, industrial power supplies, and battery chargers, making it an excellent choice for power electronics engineers and designers.
Features
- Optimized for off-line and DC-to-DC converters
- Low start-up current (< 1 mA) • Automatic feed forward compensation.
- Pulse-by-pulse current limiting.
- Enhanced load-response characteristics.
- Under voltage lockout with hysteresis.
- Double-pulse suppression.
- High-current totem-pole output.
- Internally trimmed band gap reference.
- Up to 500-kHz operation.
- Error amplifier with low output resistance.
