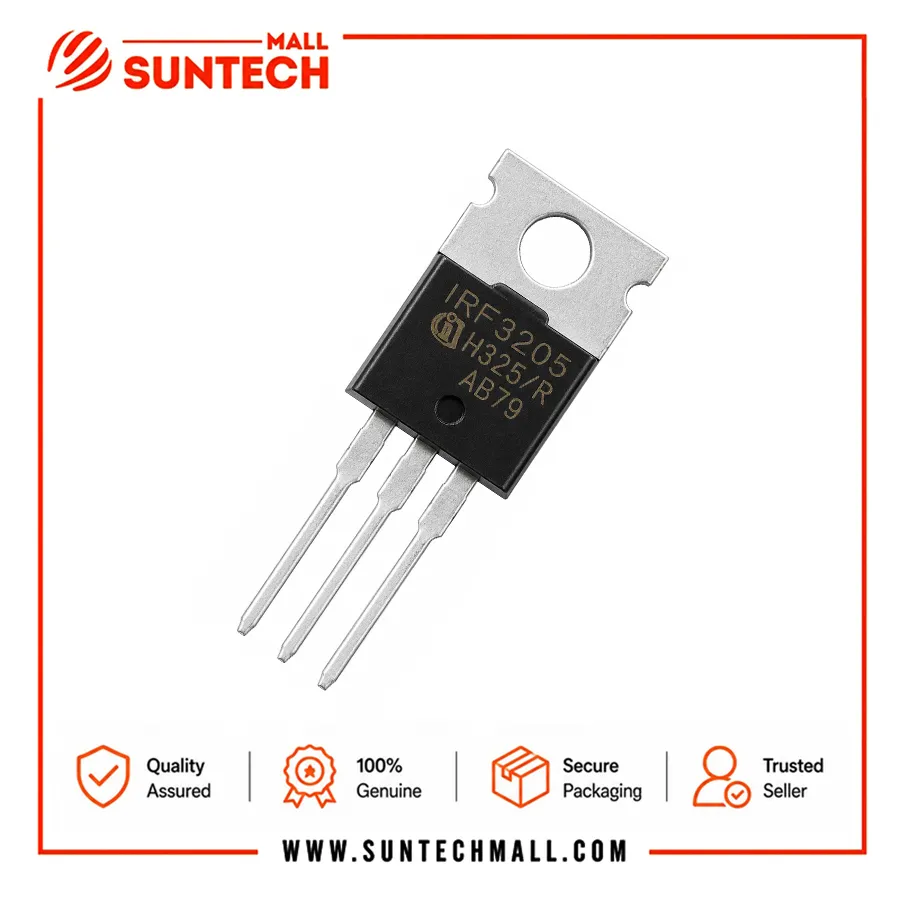

IRF 3205 N Channel Mosfet To-220
Rs110
Description
If your board needs an irf3205, and the old part is a 55V 110A N-channel power MOSFET in a TO-220 package, this is the part to order. It is a very low on-resistance power switch for solar inverters, motor drives, power supplies and battery systems, where high current must be switched with little loss. It does not fit boards that call for a higher voltage, a different package, or a different pin order. Check the checks below before you order, so the voltage, the current, the package limit, and the pin order all match your board.
This is an original, high-quality part.
What it does
A MOSFET is an electronic switch: a small voltage on the gate turns on a large current between drain and source, and taking the gate voltage away turns it off again. This part switches up to 55V, and its on-resistance is only 8mΩ at most, so at high current it wastes very little power as heat. That is what makes it fit solar inverters and motor drives, where the switch carries heavy current for long periods.
Read the current limit carefully. The datasheet gives 110A as the continuous drain current, but that is the silicon limit. In the TO-220AB package the continuous current is limited to 75A by the package itself. Plan your board for 75A continuous, not 110A, and give the part a proper heatsink — at high current it still makes real heat, and a bare part with no heatsink will overheat and fail.
Key features
- IRF3205 N-channel power MOSFET, single, enhancement mode
- TO-220AB package, through hole, 3 leads + tab
- Drain-to-source breakdown voltage 55V
- Continuous drain current 110A silicon-limited, 75A package-limited in TO-220AB
- Pulsed drain current 390A
- Maximum on-resistance 8.0mΩ at 10V gate drive
- Maximum power dissipation 200W at 25 °C case temperature
- Operating junction temperature −55 °C to +175 °C
Checks before you order
- Part code: the old part must be an IRF3205. If your old part shows a different code, stop and check your board list again.
- Voltage: the highest drain-to-source voltage on that line must stay at or below 55V. This is a low-voltage part — above 55V, it is the wrong pick.
- Current and the package limit: the continuous drain current must stay at or below 75A in this TO-220AB package, even though the silicon is rated 110A. The pulsed current must stay at or below 390A. Above those limits, this part is the wrong pick.
- Heat: at high current this part needs a proper heatsink and the mounting torque in the spec table (10 lbf·in / 1.1 N·m). Work out the heat from the on-resistance and your actual current before you fit it.
- Gate drive: the gate needs 10V for the full 8mΩ on-resistance, and the gate-to-source voltage must never go past ±20V. A 5V logic drive will not turn this part fully on.
- Pin order: pin 1 is the gate, pin 2 is the drain, pin 3 is the source, and the mounting tab is also the drain. If your board print shows a different order, this part will not fit that board as it stands.
Specifications
All figures below are from the official datasheet served by the Download button on this page. No figure here was guessed. The 110A figure is the silicon limit; the TO-220AB package limits continuous current to 75A.
| Type | N-channel power MOSFET, single, enhancement mode |
| Package | TO-220AB, through hole, 3 leads + tab (tab is the drain) |
| Drain-to-source breakdown voltage | 55 V min |
| Continuous drain current | 110 A at 25 °C case, 80 A at 100 °C case (silicon); 75 A package limit in TO-220AB |
| Pulsed drain current | 390 A |
| Maximum power dissipation | 200 W at 25 °C case |
| Gate-to-source voltage | ±20 V |
| On-resistance | 8.0 mΩ max at 10 V gate drive, 62 A |
| Gate threshold voltage | 2.0 to 4.0 V |
| Total gate charge | 146 nC max |
| Junction and storage temperature | −55 °C to +175 °C |
| Thermal resistance, junction to case | 0.75 °C/W max |
| Pin 1 | Gate |
| Pin 2 | Drain |
| Pin 3 | Source |
Other names for the same part (good to know)
Shoppers and repair techs call this same part by a few names. IRF 3205 is the part code as printed on the listing, spaced. 55V 110A MOSFET is the name buyers use when the ratings are what matters. 55V MOSFET TO-220 is the name buyers use when the voltage and the package matter. N-channel power MOSFET TO-220 is the name buyers use when the type and the package matter. If your board list calls for a 55V 110A N-channel power MOSFET in a TO-220 package, this page is the right match. Do not judge by the code alone — check the voltage, the current, the package limit, and the pin order too, because the same family number comes in other packages and ratings.
Frequently Asked Questions
What voltage and current can this MOSFET handle?
55V drain-to-source breakdown voltage, and 110A continuous drain current as the silicon limit — but only 75A continuous in the TO-220AB package. Pulsed current is 390A. Stay inside all three limits.
Why does the sheet say 110A if the package limit is 75A?
110A is what the silicon die itself can carry. The TO-220AB leads and package limit the continuous current to 75A. Plan the board for 75A continuous.
What is the on-resistance?
8.0mΩ at most, at 10V gate drive and 62A drain current. A lower on-resistance means less heat at the same current.
What gate voltage does it need?
10V on the gate for the full rated on-resistance. The gate threshold is 2.0 to 4.0V, and the gate must never go past ±20V.
Which pin is which?
Pin 1 is the gate, pin 2 is the drain, pin 3 is the source, and the mounting tab is also the drain. Check the stocked part before fitting, as the gates note says.
What is the price of this part?
Check the live price on the website. The price shown on the product page is the current one.
Use note kept from the old page: this part was listed before as a high-performance N-channel MOSFET for efficient power management, with a 55V rating and 110A current capacity, in a TO-220 package, for high-power applications including solar inverter systems, solar inverters, motor drives and power supplies, with low on-resistance that reduces power loss and improves efficiency — and that use still stands, with the voltage stated as the datasheet shows: this is a low-voltage 55V part, and the package current limit is 75A continuous in the TO-220AB package.
You can view and download the datasheet for this part from the Download button on this page.
