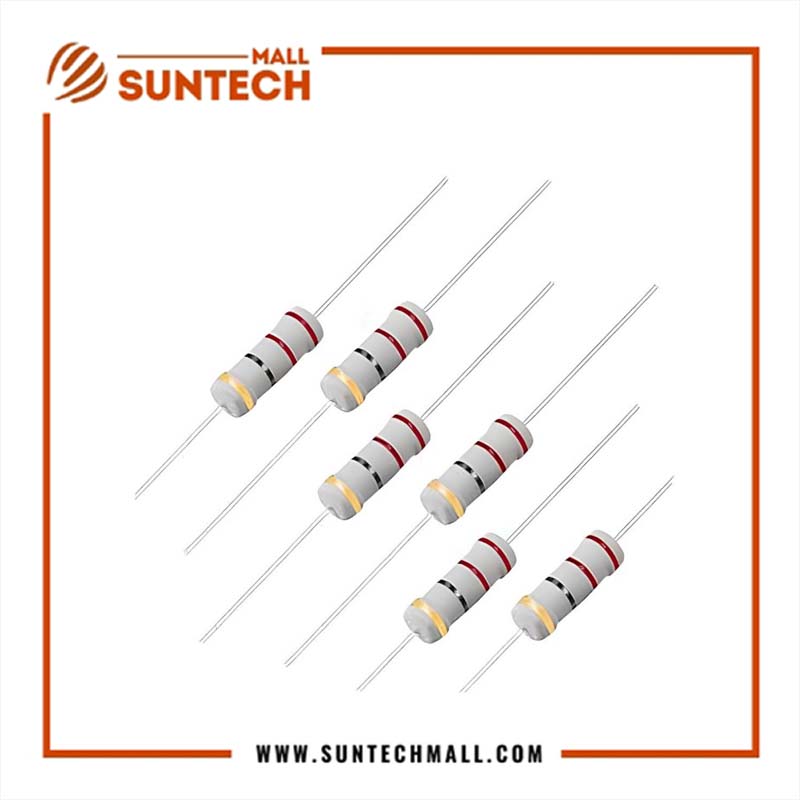

10 Ohm 2W 5% Carbon Film Fixed Resistor

If your board needs a 10 ohm resistor that can handle real power, and the old part is a 2W carbon film part with 5% tolerance, this is the part to order. It is a 10 ohm 2w resistor in an axial through-hole body, built for stable current flow, energy conversion, and current limiting where a small resistor would run too hot. It fits solar inverters, power management, LED circuits, and audio equipment that need a fixed 10 ohm value at up to 2W. It does not fit jobs that need a different resistance value, a surface-mount body, or more than 2W of power. Check the checks below before you order, so the value, the power, the voltage, and the body all match your board.

This is an original, high-quality part.

What it does

A resistor limits current and drops voltage in a circuit. A carbon film resistor does that job with a thin carbon layer on a ceramic rod, which gives steady performance at low cost for standard circuit designs. This 10 ohm resistor holds its 10 ohm value within 5%, so a board that calls for 10 ohm gets between 9.5 and 10.5 ohm. The 2W rating is what sets it apart from the small resistors used for signal work only — it can turn real power into heat without damage, as long as the cooling and the voltage limits below are respected. The 10 ohm value is a low value, so at the same voltage it passes far more current than a high-value part.

Repair techs use a part like this as a 10 ohm resistor for current limiting, where it holds current to a safe level, and for energy conversion, where a steady low resistance keeps a power stage stable. It also fits power management and LED circuits, where a fixed low value sets a level or shares a load. It is an axial resistor, so it mounts through holes on a board, not on the surface. You can check the value on the body itself: a 10 ohm 5% part carries four colour bands — brown, black, black, gold.

Key features

• 10 Ohm fixed resistance, ±5% tolerance
• 2W power rating at 70°C ambient
• Carbon film construction for dependable, low-cost, stable work
• Axial leads for through-hole mounting on PCBs and breadboards
• Maximum working voltage 500V (see the power-based limit in the checks)
• Temperature coefficient ±350 ppm/°C
• Wide temperature range: −55°C to +155°C

Checks before you order

• Value: your board list must call for 10 ohm. A nearby value is not the same part — if your board needs a different value, stop and check the board list again. A 0.33 ohm part in the same family is a different job, not a swap for this one.
• Power and heat: the power this part turns into heat must stay at or below 2W, and that 2W counts only up to 70°C ambient — above that, the safe power drops toward zero at 155°C, so check the derating for your real working temperature. Work out the power from your real voltage and current (power = voltage × current) and keep it inside 2W with room to spare.
• Voltage: the voltage across this part must stay inside the limits in the table. From power alone, the working voltage for a 10 ohm part at 2W is about 4.5V, and the series cap is 500V — stay below both. Above that, this part is the wrong pick.
• Temperature: the real value may sit up to 5% away from 10 ohm. If your circuit needs tighter than 5%, this part is the wrong pick — do not hope the part you get sits near the middle.
• Body and fit: your board must take an axial through-hole body. Measure the old part and match it against the holes and the space on your board. The series normal-style body for a 2W part is about 15.5 mm long and 5.0 mm across — if your old part is much smaller, check the board list again before you order.
• Fit for the job: if your circuit only needs a fraction of a watt, this big part still works, but a 15K part in the same family is a different job, not a swap for this one. Match the value first, then the power, then the body.

Specifications

All figures below are from the maker series documents for this resistor family. No figure here was guessed. The maker of the exact part on this page is not stated on the live page, so the publisher should confirm the series figures against the Download file at publish time (see the gates note).

Other names for the same part (good to know)

Shoppers and repair techs call this same part by a few names. 10 ohm 2w is the plain name from its value and its power. 10 ohm resistor is the name buyers use with the unit spelled out. Carbon film resistor is the name for its construction type. Axial resistor is the name for its lead style. 10 ohm 5% is the short name that carries the value and the tolerance together. If your board list calls for 10 ohm at 2W with 5% tolerance in an axial body, this page is the right match. Do not judge by size alone — check the value, the power, and the tolerance too.

Frequently Asked Questions

What does 10 ohm mean?

It means 10 ohms of resistance. Ohm is the unit of resistance, so a 10 ohm part resists current flow by 10 ohms.

What does 2W mean, and what does 5% mean?

2W is the power rating: the most power the part can turn into heat without damage, rated at 70°C ambient, with less allowed as it gets hotter. 5% is the tolerance: the real resistance may sit up to 5% above or below 10 ohm, so between 9.5 and 10.5 ohm.

What are the colour bands on a 10 ohm resistor?

Four bands: brown, black, black, gold. Brown is 1, black is 0, the second black means no more zeros, and gold means ±5% tolerance. That reads as 10 ohm ±5%.

Can I use a different value, like a 15 ohm part?

No, not without checking the circuit. A resistor value sets the current and the voltage drop, so a different value changes how the circuit behaves. Only swap in a different value if the circuit design allows it — otherwise match the board list exactly.

How do I fit an axial resistor?

Push the two leads through the matching holes on the board, bend them flat on the back if the board needs it, and solder them. Check the spacing of the holes against the body length before you solder, and keep the body clear of parts that cannot take heat.

What is the price of this part?

Check the live price on the website. The price shown on the product page is the current one.

Use note kept from the old page: this part was listed before as a 10 ohm 2W carbon film resistor for stable current flow and efficient energy conversion in solar inverters, for LED circuits, audio equipment, and power management systems, with carbon film construction for thermal stability, low noise, stable performance and a small effect from temperature, with axial leads for easy mounting in home appliances, communication, instruments, and electronic equipment — and that use still stands.
