TLP350H GATE DRIVER OPTOCOUPLER SO-8

TLP350H GATE DRIVER OPTOCOUPLER SO-8

The TLP350H Gate Driver Optocoupler SO-8 is a high-speed optocoupler designed for efficient and reliable signal isolation in power electronics applications, such as solar inverters. This device ensures excellent insulation and fast switching capabilities, making it ideal for driving IGBTs and MOSFETs in high-power systems. With its compact SO-8 package, the TLP350H offers a space-saving solution without compromising performance. Featuring a totem-pole output, it provides a high-speed optocoupler function that enables precise signal transmission, reducing power loss and enhancing system efficiency. Engineers and designers looking for robust, high-isolation components can rely on the TLP350 series for superior performance in demanding environments.

The TLP350 and its DIP variants, such as TLP 350 DIP and TLP350 DIP, are widely used in solar inverters and motor drive applications where fast response and electrical isolation are crucial. The TLP350 Datasheet provides comprehensive details on its characteristics, including its high output current and low propagation delay. Whether used in industrial automation, renewable energy systems, or power converters, this MOSFET driver and IGBT driver ensures improved reliability and longevity in critical electronic circuits.

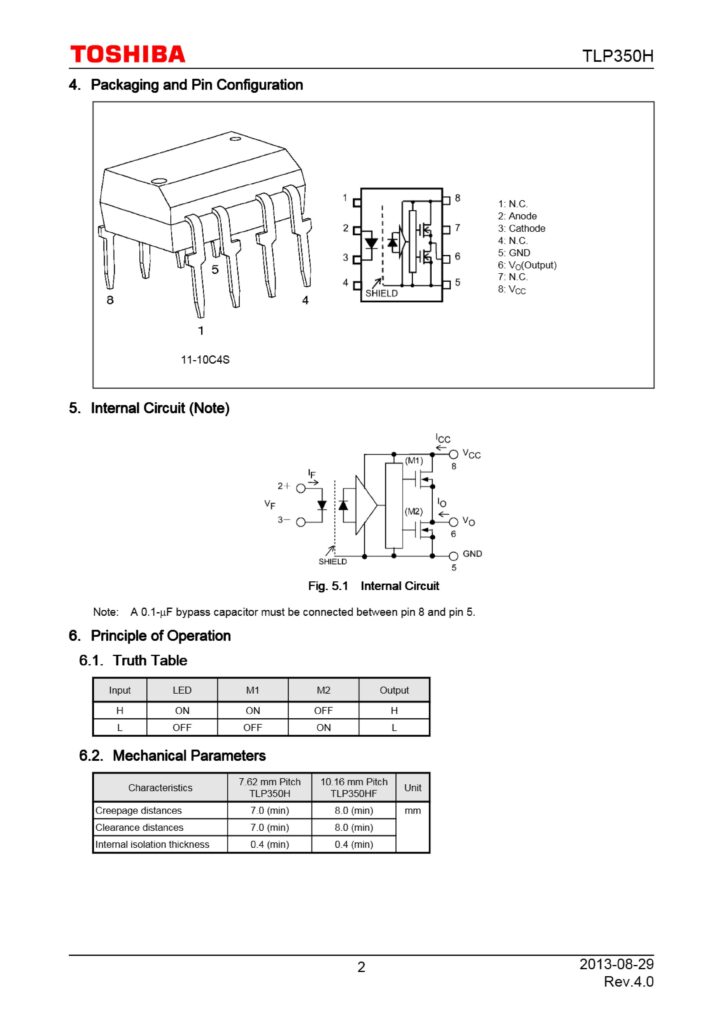

As infrared light-emitting diode (LED) optically coupled to an integrated high-gain, high-speed photodetector IC chip. It provides guaranteed performance and specifications at temperatures up to 125C.

The TLP350H has an internal Faraday shield that guarantees a common-mode transient immunity of 20 kV/μs. Its totem pole output can both sink and source current. This is ideal for IGBTs from small to middle capacity and power MOSFET gate drives.

Applications:

• Transistor Inverters
• Air Conditioner Inverters
• MOSFET Gate Drivers
• IGBT Gate Drivers
• Induction Cooktop and Home Appliances
• Buffer logic type (totem pole output)

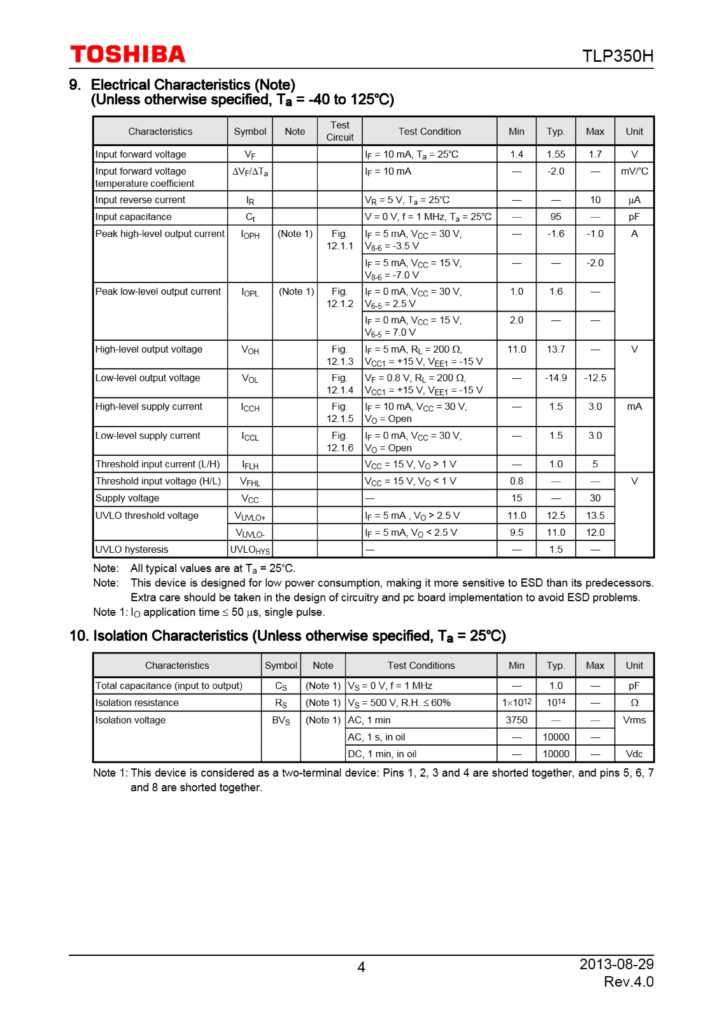

• Output peak current: ±2.5 A (max)
• Operating temperature: -40 to 125
• Supply current: 3 mA (max)
• Supply voltage: 15 to 30 V
• Threshold input current: 5 mA (max)
• Propagation delay time: tpHL/tpLH= 500 ns (max)
• Common-mode transient immunity: ±20 kV/μs (min)
• Isolation voltage: 3750 Vrms (min)
• Safety standards
• UL-approved: UL1577 File No.E67349
• cUL-approved: CSA Component Acceptance Service No.5A, File No.E67349
• VDE-approved: Option (D4) EN60747-5-5

Note:When an EN60747-5-5 approved type is needed, please designate the Option (D4)
