STGWA 80H65DFB IGBT TO-247

2 reviews Add a review

Description



STGWA 80H65DFB: If your board needs a 650V 80A IGBT that switches fast with low loss, and the old part on the board is marked GWA80H65DFB (order code STGWA80H65DFB), this is the part to order. It is a trench gate field-stop IGBT in a TO-247 long-leads through-hole body, built for demanding high-power switching work. It fits photovoltaic inverters, high-frequency converters, UPS systems, motor drives, welding machines, and industrial power supplies where a TO-247 IGBT must carry high current and switch fast.

It does not fit jobs that need more than 650 V, more than 80 A of steady current at a hot case, a different body, or a MOSFET. Check the checks below before you order, so the voltage, the current, the gate drive, the cooling, and the body all match your board.

This is an original, high-quality part.

What it does

An IGBT is a switch that a small gate signal turns on and off, and that then carries large power on its main path. This high-speed IGBT uses a trench gate with a field-stop layer, which keeps the on-state loss low while still switching fast, and its slightly positive saturation-voltage temperature coefficient and tight parameter spread make parallel use safer.

This part holds up to 650 V when off, carries 80 A steady at a 100 °C case (120 A at a 25 °C case), and drops only 1.6 V typical at 80 A, so it wastes less power as heat than a higher-drop switch would. Its co-packed diode is a very fast soft-recovery diode, recovering in 85 ns typical at 25 °C, which keeps switching noise down.

Repair techs use this kind of part as a photovoltaic inverter IGBT and in UPS, welding, and motor drive work, where high voltage and high current meet fast switching. It is a 650V 80A IGBT, so it suits high-power DC bus work where a small switch would fail at once. It is not a MOSFET: it needs a proper gate drive (15 V for full turn-on) and it must never be driven like a logic-level part.

Key features

  • 650 V collector-emitter voltage limit
  • 80 A steady collector current at 100 °C case (120 A at 25 °C case)
  • Low saturation voltage: 1.6 V typical at 80 A
  • Trench gate field-stop design, high-speed series, for safe parallel use
  • Fast switching: 84 ns turn-on delay, 280 ns turn-off delay at 400 V, 80 A
  • Low switching loss: 3.6 mJ total at 25 °C
  • Very fast soft-recovery diode: 85 ns typical recovery at 25 °C
  • Strong pulse limit: 240 A pulsed collector current
  • High power handling: 469 W at 25 °C case
  • TO-247 long-leads through-hole body for good heat handling
  • Wide junction range: −55 °C to +175 °C

Checks before you order

  • Part number: the body must show GWA80H65DFB (order code STGWA80H65DFB). If your old part shows a different number, stop and check your board list again. Do not judge by size alone — other TO-247 parts do a different job.
  • Device type: your board must need an IGBT, not a MOSFET and not a plain transistor. An IGBT and a MOSFET with the same body are not swaps for each other.
  • Package: your board must take a TO-247 long-leads body with three leads through holes. Measure the old part and match it against the holes on your board.
  • Voltage: the collector-emitter voltage on your circuit must stay at or below 650 V, and the gate drive must stay inside ±20 V. Above those limits, this part is the wrong pick.
  • Current and heat: the steady current must stay at or below 80 A at a 100 °C case — the 120 A figure only counts at a 25 °C case, so check the derating for your real cooling. Work out the heat from your real current and the saturation voltage (1.6 V typical at 80 A) and keep the total power inside the 469 W limit at a 25 °C case, with a heatsink and airflow that fit the job.
  • Gate drive: drive the gate at 15 V for full turn-on, and check the threshold (5 V to 7 V) against your driver. A weak gate drive leaves the part half on, and it will run hot.
  • Fit for the job: if your board needs a different voltage or current class, that is a different part — a 650V 75A IGBT on another page is a different rating, not a swap for this one. Match the voltage, the current, the gate drive, and the body first.
  • Pin layout: the pins are Gate (1), Collector (2, also the tab), Emitter (3). Fit the new part exactly the way the old part sat, and check the lead layout against the datasheet figure for this part before you solder. An IGBT put in with the wrong leads will not work and can fail at once.

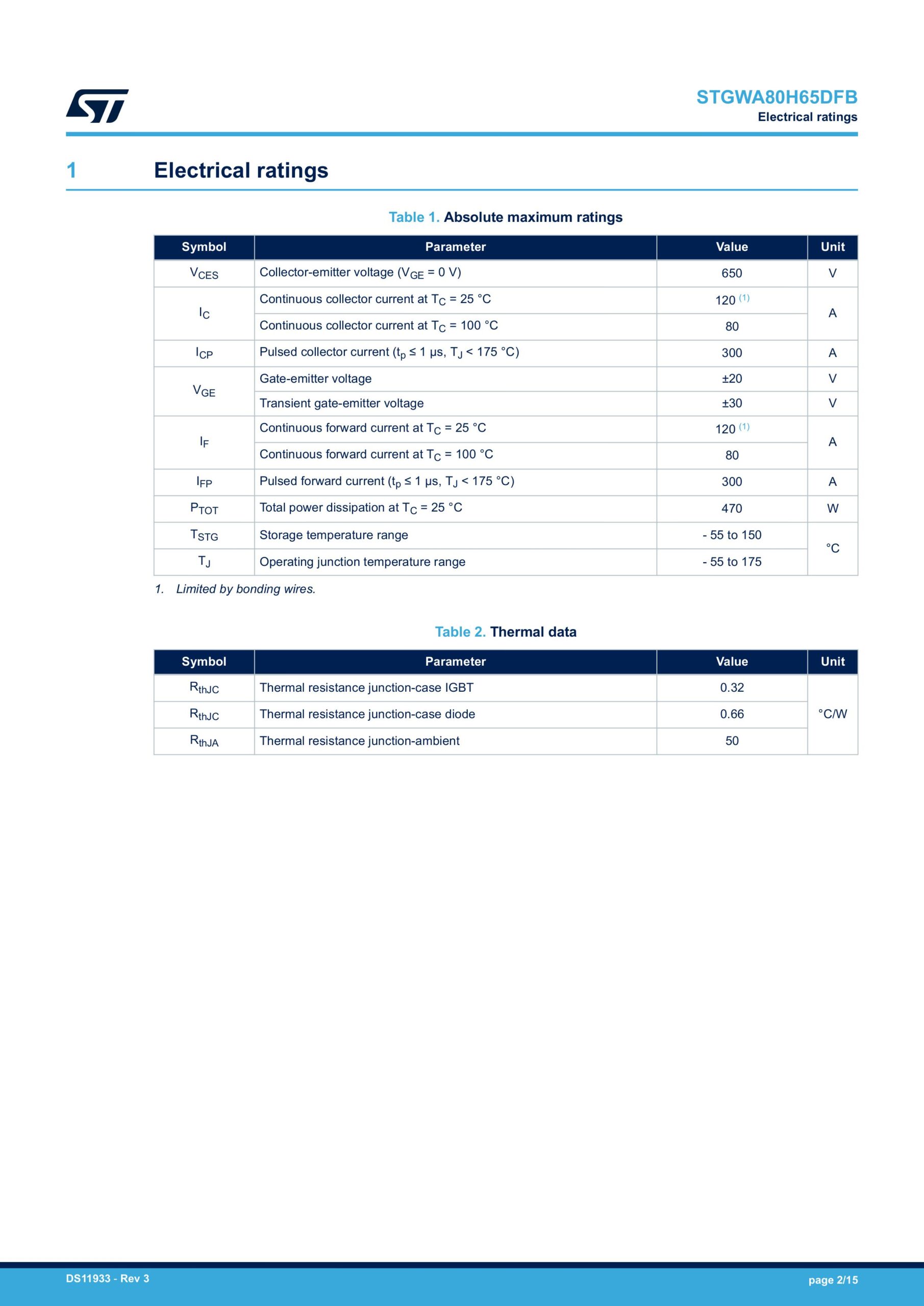

Specifications

All figures below are for the STGWA80H65DFB part at +25 °C unless noted. No figure here was guessed.

Type Trench gate field-stop IGBT, HB high-speed series, with very fast soft-recovery antiparallel diode
Package TO-247 long leads, 3 leads, through-hole
Order code / body marking STGWA80H65DFB / GWA80H65DFB
Collector-emitter voltage 650 V
Gate-emitter voltage ±20 V
Continuous collector current 120 A at 25 °C case; 80 A at 100 °C case
Pulsed collector current 240 A
Diode continuous forward current 120 A at 25 °C case; 80 A at 100 °C case
Total dissipation 469 W at 25 °C case
Saturation voltage, typ / max 1.6 V / 2.0 V at 80 A, 15 V gate, 25 °C
Diode forward voltage, typ / max 1.9 V / 2.3 V at 80 A, 25 °C
Gate threshold voltage 5 V to 7 V
Total gate charge, typ 414 nC at 520 V, 80 A, 15 V gate
Switching, typ, 25 °C (400 V, 80 A, 10 Ω gate, 15 V gate) Turn-on delay 84 ns; rise 52 ns; turn-off delay 280 ns; fall 31 ns; total loss 3.6 mJ
Switching, typ, 175 °C (same conditions) Turn-off delay 328 ns; total loss 6.5 mJ
Diode recovery time, typ 85 ns at 25 °C; 149 ns at 175 °C
Thermal resistance, junction to case 0.32 °C/W (IGBT); 0.66 °C/W (diode)
Operating junction temperature −55 °C to +175 °C
Storage temperature −55 °C to +150 °C
Pin order Gate (1), Collector (2 or TAB), Emitter (3)

Other names for the same part (good to know)

Shoppers and repair techs call this same part by a few names. STGWA80H65DFB is the full order code. GWA80H65DFB is the code printed on the body. 650V 80A IGBT is the plain name from its two headline limits (80 A at a 100 °C case). TO-247 IGBT is the name buyers use for its body. Trench gate field-stop IGBT is the name buyers use for its design. High-speed IGBT is the name buyers use for its fast-switching series.

If you see GWA80H65DFB on a TO-247 long-leads body, and your circuit needs 650 V at 80 A with a high-speed IGBT, this page is the right match. Do not judge by the body size alone — check the part number and the limits too.

Frequently Asked Questions

Why does this part show both 80 A and 120 A?

Both figures are for the same part at different case temperatures: 120 A counts at a 25 °C case, and 80 A counts at a 100 °C case. Use the 80 A figure for hot real-world boards, and derate from there.

What voltage and current can this part handle?

It handles up to 650 V collector-emitter and up to 80 A of steady collector current at a 100 °C case (120 A at a 25 °C case), with short pulses up to 240 A and total power up to 469 W at a 25 °C case. Stay inside all of those limits at the same time, and derate the current as the case gets hotter.

Can I use a MOSFET in place of this IGBT?

No. An IGBT and a MOSFET switch in different ways and need different gate drives, even when they share the same body. Match the device type from your board list, not just the body size.

What gate voltage does this part need?

Drive the gate at 15 V for full turn-on. The gate threshold sits between 5 V and 7 V, and the gate must never go past ±20 V.

Which way round does this part go?

The pins are Gate (1), Collector (2, also the tab), Emitter (3). Fit it exactly the way the old part sat, and check the lead layout against the datasheet figure for this part before you solder.

What is the price of this part?

Check the live price on the website.

Use note kept from the old page: this part was listed before as a high-efficiency power transistor for demanding power electronics, with a 650 V rating and current capacity up to 80 A, excellent switching performance, low conduction losses, and high thermal reliability, ideal for inverters, UPS systems, motor drives, welding machines, solar inverters, and industrial power supplies, in a TO-247 package for better heat dissipation, suitable for continuous high-power operation — and that use still stands.

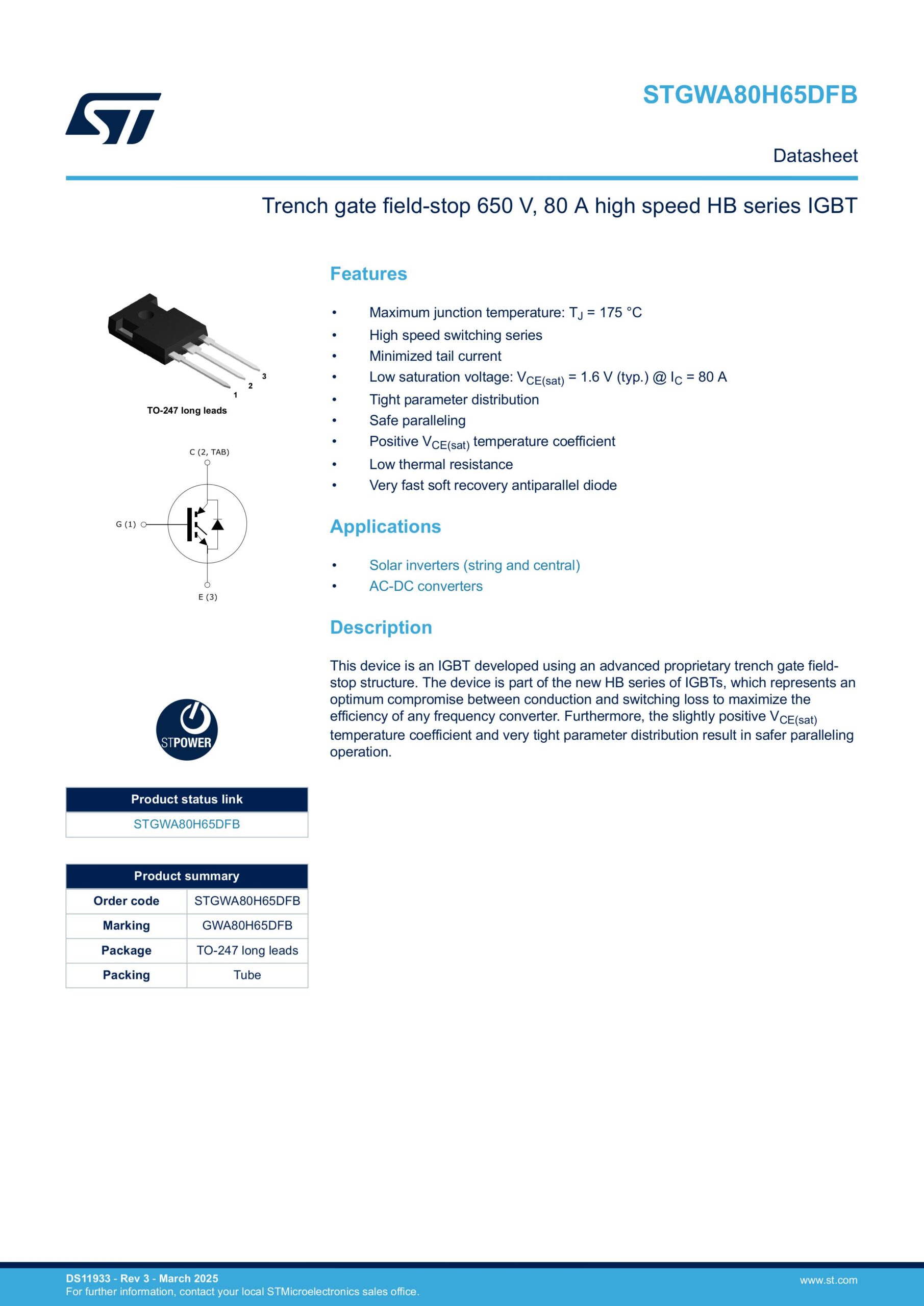

You can view and download the datasheet for this part from the Download button on this page.

SKU80H65FB-IGBT TAGS650V 80A IGBT
