TL431 36V 100mA SMD PRICISION SHUNT REGULATOR SOT-23

TL431 36V 100mA SMD PRICISION SHUNT REGULATOR SOT23

The TL431 shunt regulator is a highly stable and adjustable precision shunt regulator TL431, designed to provide accurate voltage regulation in power supply circuits. With a 36V shunt voltage regulator capability and a 100mA current rating, it ensures efficient power management in sensitive electronic applications. Encased in a compact TL431 SOT-23 package, this regulator is ideal for space-constrained designs while delivering reliable performance. Widely used in solar inverters, it helps maintain stable voltage levels, preventing fluctuations that could impact efficiency and longevity in renewable energy systems.

Optimized for precision and durability, the TL431 for solar inverter applications ensures effective voltage reference control, enhancing overall system stability. Its low power consumption and adjustable output make it a versatile solution for various power regulation needs. The SOT-23 package allows for easy surface-mount integration, making it a preferred choice for modern electronic designs. For complete specifications and performance insights, refer to the TL431 datasheet, which provides detailed electrical characteristics. Whether used in industrial, automotive, or renewable energy applications, the shunt regulator is a trusted solution for precision voltage regulation.

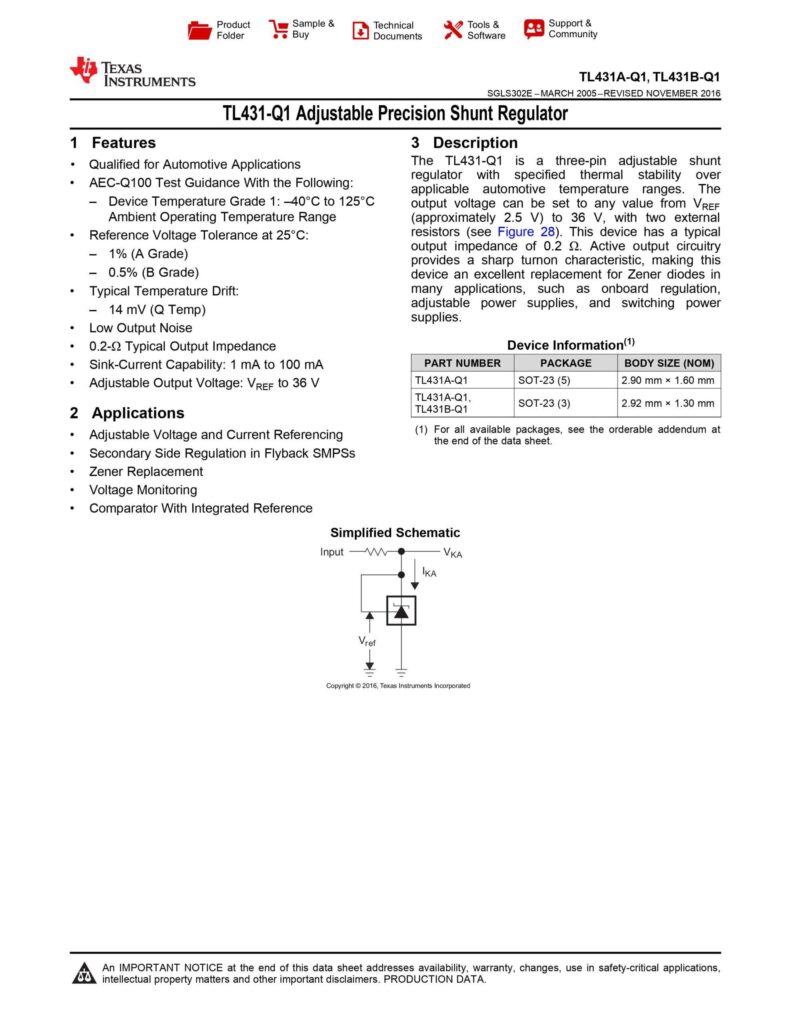

 Features

• Qualified for Automotive Applications
• AEC-Q100 Test Guidance With the Following: – Device Temperature Grade 1: –40°C to
• 125°C Ambient Operating Temperature Range

• Reference Voltage Tolerance at 25°C:– 1% (A Grade) – 0.5% (B Grade)
• Typical Temperature Drift: – 14 mV (Q Temp)
• Low Output Noise
• 0.2-Ω Typical Output Impedance
• Sink-Current Capability: 1 mA to 100 mA
• Adjustable Output Voltage: VREF to 36 V 2

Applications

• Adjustable Voltage and Current Referencing
• Secondary Side Regulation in Fly back SMPSs
• Zener Replacement
• Voltage Monitoring
• Comparator With Integrated Reference
