TC4427 1.5A Dual High-Speed Power MOSFET Drivers IC SOD-8

TC4427 1.5A Dual High-Speed Power MOSFET Drivers IC

The TC4427 1.5A MOSFET driver is a high-speed, dual-channel solution designed for efficient switching applications. With its TC 4427 1.5A gate driver capability, it ensures rapid and reliable performance in circuits requiring precise control of power MOSFETs. The TC 4427 driver applications extend across motor control, power supply regulation, and other high-frequency switching designs, making it a versatile choice for engineers and designers. Its compact TC 4427 pin configuration allows for seamless integration into PCB layouts, optimizing space while delivering superior efficiency.

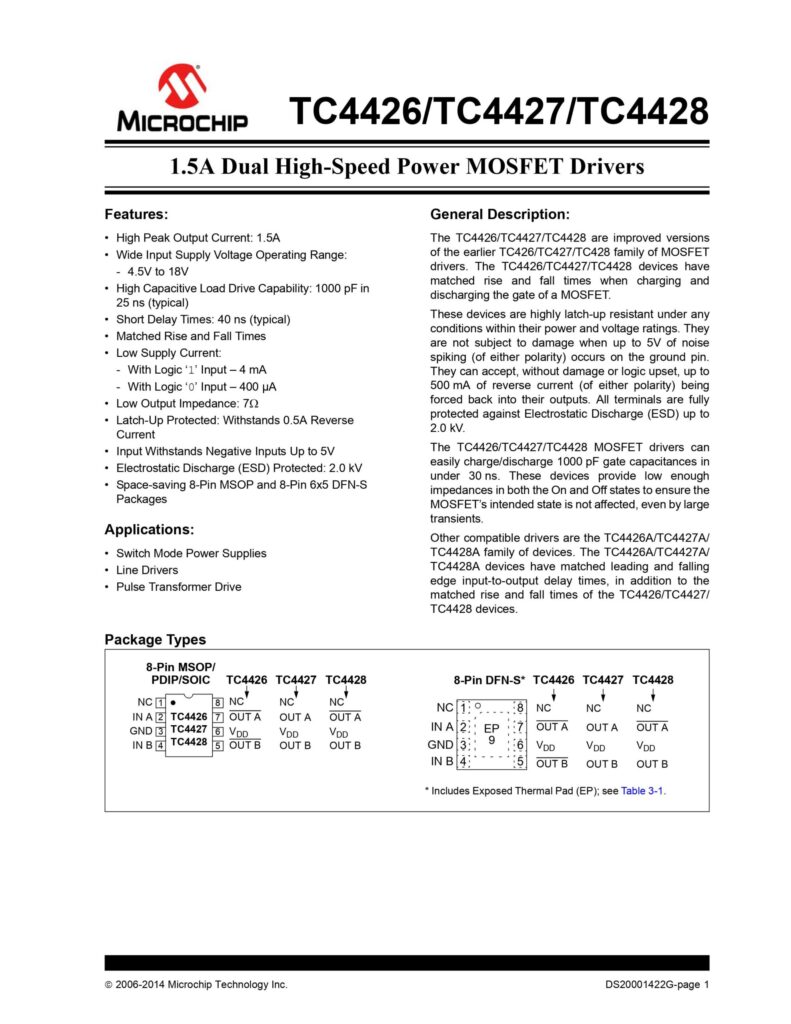

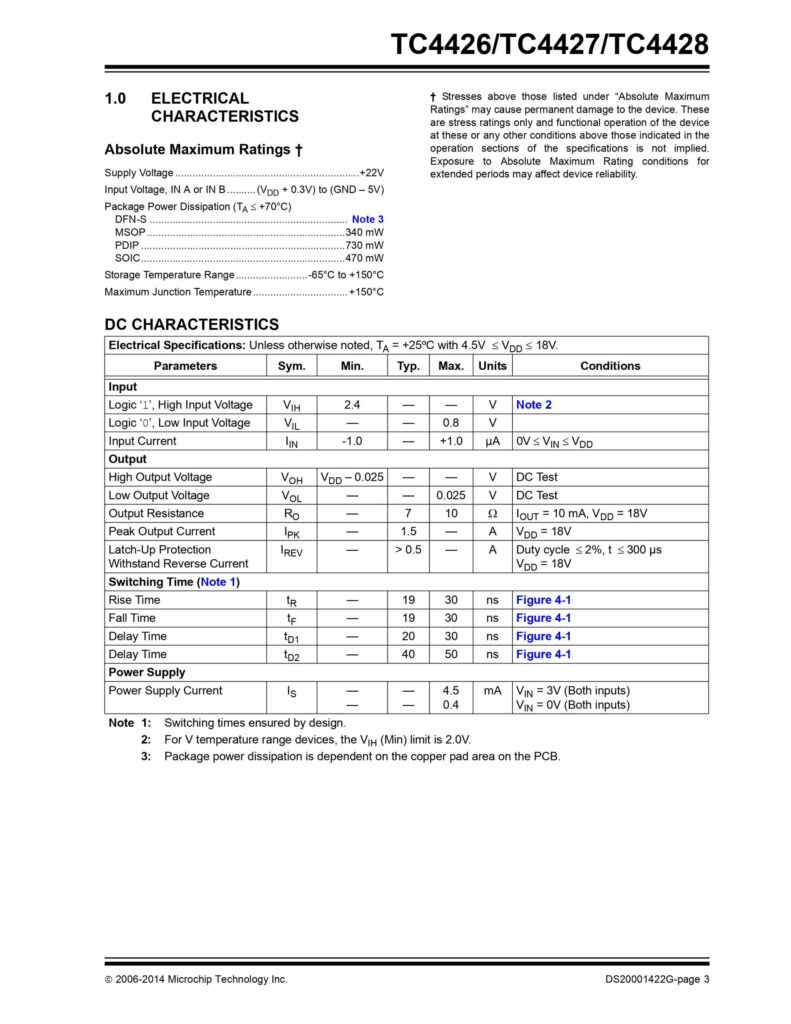

For those seeking in-depth technical insights, the TC 4427 datasheet provides comprehensive details on electrical characteristics, performance parameters, and recommended usage guidelines. Understanding the TC 4427 pin configuration is crucial for maximizing its potential in various TC4427 driver applications, ensuring optimal performance in demanding electronic circuits. Whether used in industrial, automotive, or consumer electronics, the TC 4427 1.5A gate driver remains a trusted component for achieving high-speed, low-loss switching in power systems

Features:

• High Peak Output Current: 1.5A
• Wide Input Supply Voltage Operating Range: – 4.5V to 18V
• High Capacitive Load Drive Capability: 1000 pF in 25 ns (typical)
• Short Delay Times: 40 ns (typical)
• Matched Rise and Fall Times
• Low Supply Current: – With Logic ‘1’ Input – 4 mA – With Logic ‘0’ Input – 400 µA W
• Low Output Impedance: 7
• Latch-Up Protected: Withstands 0.5A Reverse Current
• Input Withstands Negative Inputs Up to 5V
• Electrostatic Discharge (ESD) Protected: 2.0 kV
• Space-saving 8-Pin MSOP and 8-Pin 6×5 DFN-S Packages

Applications:

• Switch Mode Power Supplies
• Line Drivers
• Pulse Transformer Drive
