SG 3525 PWM CONTROLLER IC NARROW SOP-16

(10 customer reviews)
Availability:

2499 in stock


40.00

2499 in stock

Compare

SG 3525 PWM CONTROLLER IC  NARROW SOP-16

The SG3525 is a high-performance PWM controller IC designed for precise power regulation in solar inverter and power supply applications. This SOP-16 PWM IC offers efficient energy conversion, ensuring stable voltage and current control. As a pulse width modulation IC, it enhances system efficiency, making it ideal for high-efficiency PWM controller designs in compact electronic circuits.

Engineered for reliability, the SG3525 for solar inverter supports push-pull, half-bridge, and full-bridge topologies. Its SOP-16 PWM IC package provides a space-saving design, perfect for modern power applications. This solar inverter IC includes built-in error amplifiers, soft-start capability, and wide input voltage compatibility. The SG3525 datasheet highlights its robust features, making it an excellent choice for high-efficiency PWM controller applications in renewable energy and industrial power solutions requiring precise and stable power management.

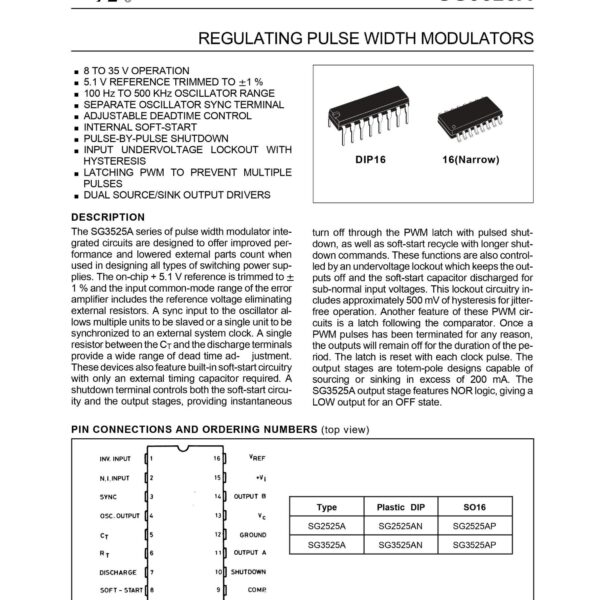

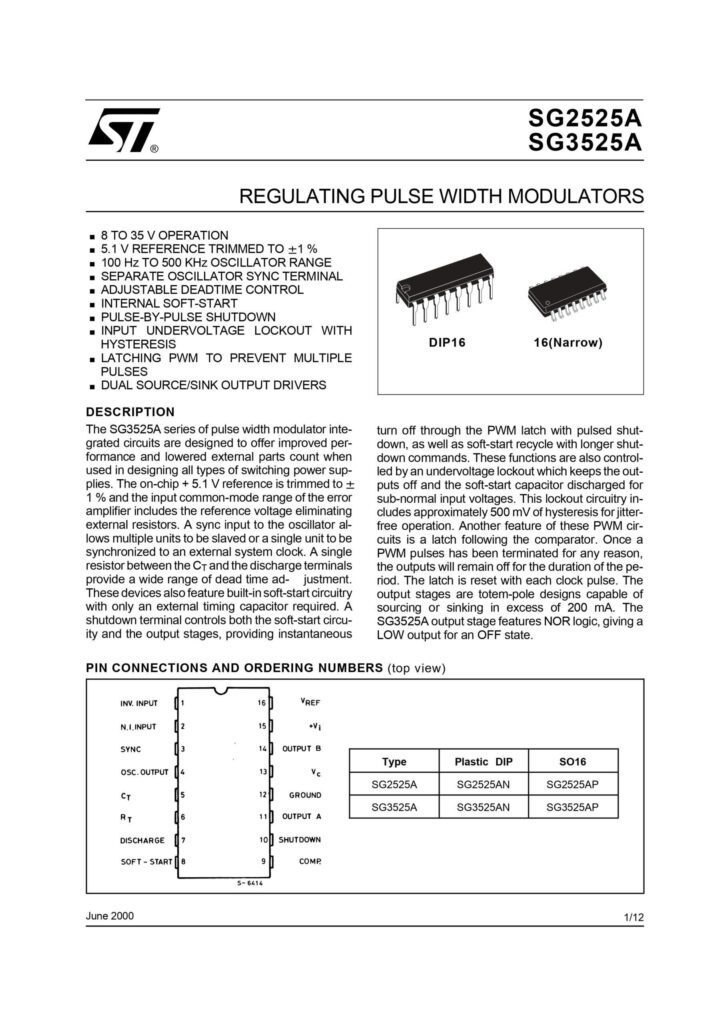

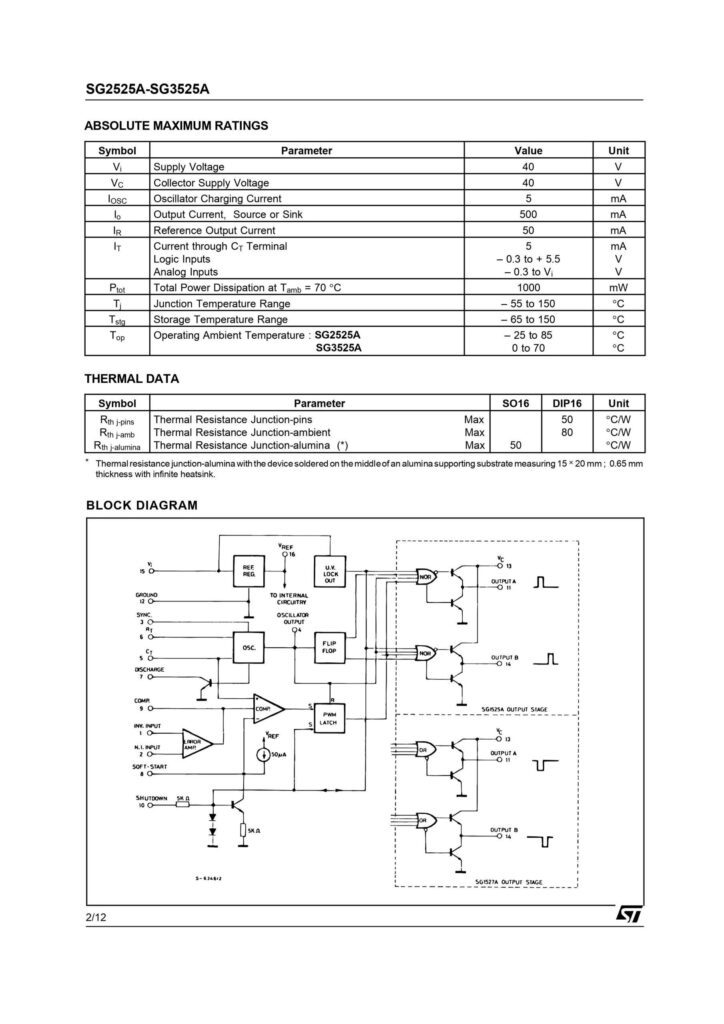

The series of pulse width modulator integrated circuits are designed to offer improved performance and lowered external parts count when used in designing all types of switching power supplies. The on-chip + 5.1 V reference is trimmed to ± 1 % and the input common-mode range of the error amplifier includes the reference voltage eliminating external resistors. A sync input to the oscillator allows multiple units to be slaved or a single unit to be synchronized to an external system clock. A single resistor between the CT and the discharge terminals provide a wide range of dead time adjustment. These devices also feature built-in soft-start circuitry with only an external timing capacitor required. A shutdown terminal controls both the soft-start circuitry and the output stages, providing instantaneous.

Key Features:

  • Ensures stable and efficient power conversion
  • Supports push-pull and bridge topologies
  • Enhances efficiency by reducing switching losses
  • Compact design for modern PCB layouts
  • Prevents inrush current for smoother operation
  • Prevents low voltage failures
  • Enhances system safety and reliability
  • Ideal for energy-efficient applications





SKU: SG3525SMD-IC Categories: , Tag:
