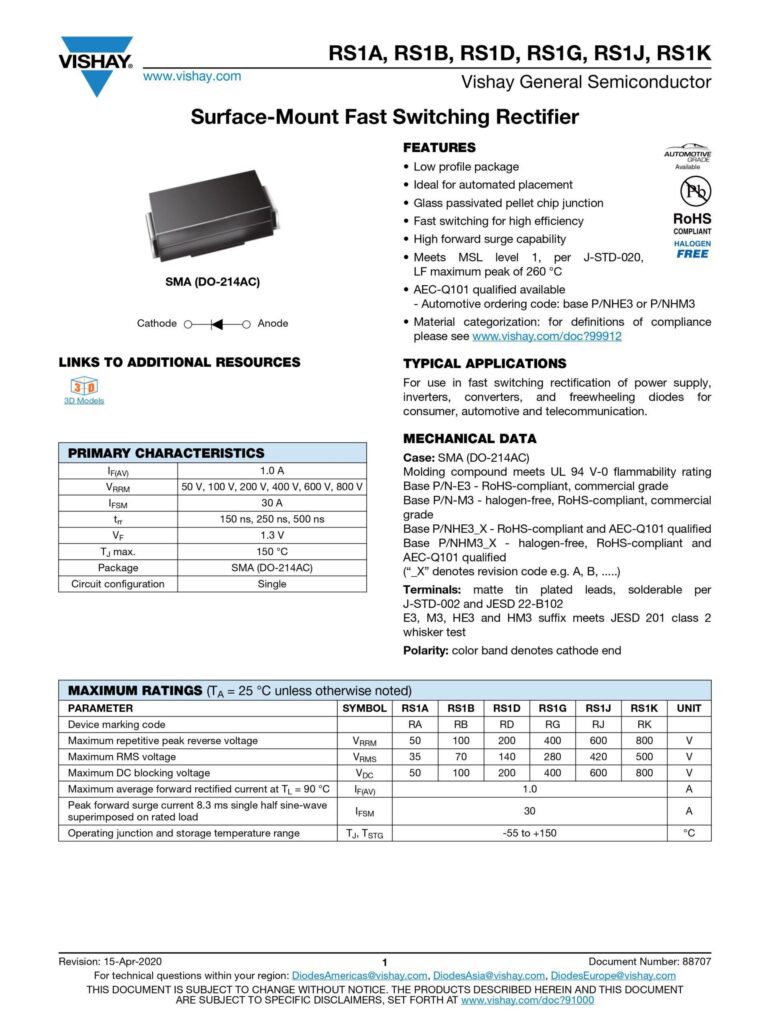

RS1J SMD FAST SWITCHING RECTIFIER DIODE DO-214AC

RS1J SMD FAST SWITCHING RECTIFI DIODE DO-214AC

The RS1J diode is a fast switching rectifier designed for high-efficiency applications, making it an ideal choice for solar inverters. With its DO-214AC package, this SMD rectifier diode ensures reliable operation, reduced power loss, and excellent thermal stability. Its low forward voltage rectifier characteristics enhance overall efficiency, ensuring minimal energy dissipation in power conversion circuits.

The RS1J for solar inverter applications provides high-efficiency rectification with rapid response to voltage changes, making it suitable for high-frequency switching power supplies. This diode offers excellent surge capability and reliability, crucial for protecting circuits against voltage fluctuations. With its RS1J datasheet specifications, engineers can seamlessly integrate this fast switching rectifier into various electronic applications, ensuring optimal power management and protection in renewable energy and industrial systems.

This SMD Fast Switching Rectifier Diode in DO-214AC package is designed for high-speed and efficient power rectification in solar inverters. With a 600V peak reverse voltage and a fast recovery time, it ensures smooth energy conversion, reducing power loss and improving system stability. Its compact SMD design makes it ideal for modern solar inverter circuits and other power applications.

FEATURES

• Low profile package
• Ideal for automated placement
• Glass passivated pellet chip junction
• Fast switching for high efficiency
• High forward surge capability
• Meets MSL level 1, per J-STD-020, LF maximum peak of 260 °C
• AEC-Q101 qualified available – Automotive ordering code: base P/NHE3 or P/NHM3
• Material categorization: for definitions of compliance
