MMBT2222A 1P NPN SWITCHING TRANSISTOR SOT-23
The MMBT2222A NPN transistor is a high-performance 1P switching transistor designed for fast switching applications in solar inverters and power circuits. With its compact SOT-23 package, this transistor provides excellent efficiency in low-power applications, making it ideal for voltage regulation and signal amplification. The MMBT2222A transistor for solar inverter offers reliable operation with a high current gain, ensuring stable performance in DC-DC conversion and inverter circuits.

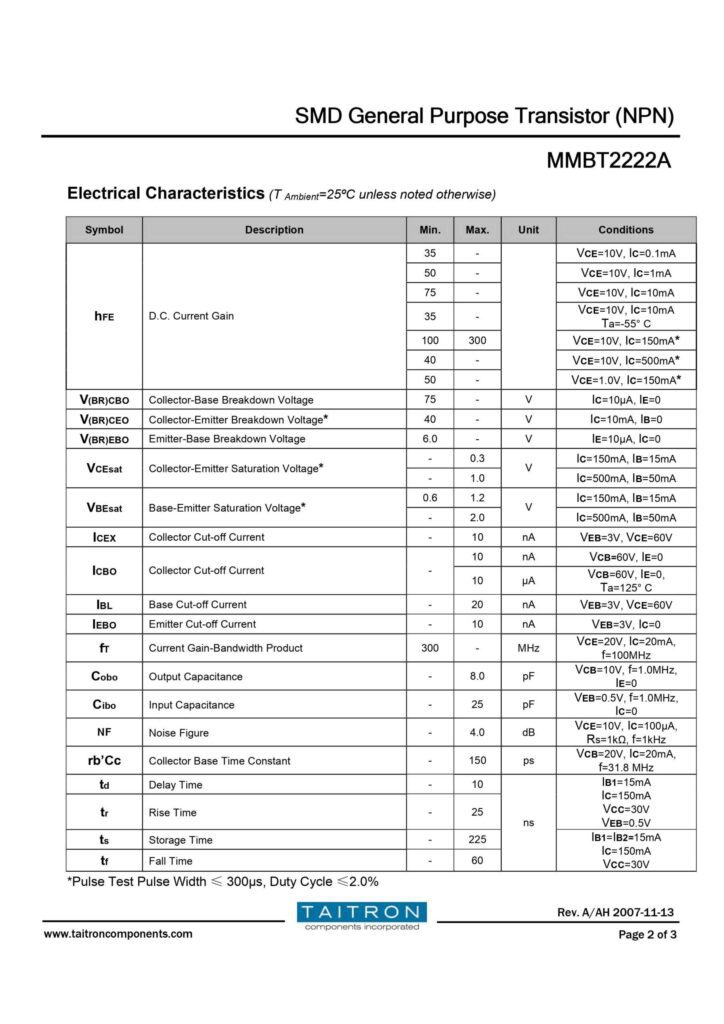

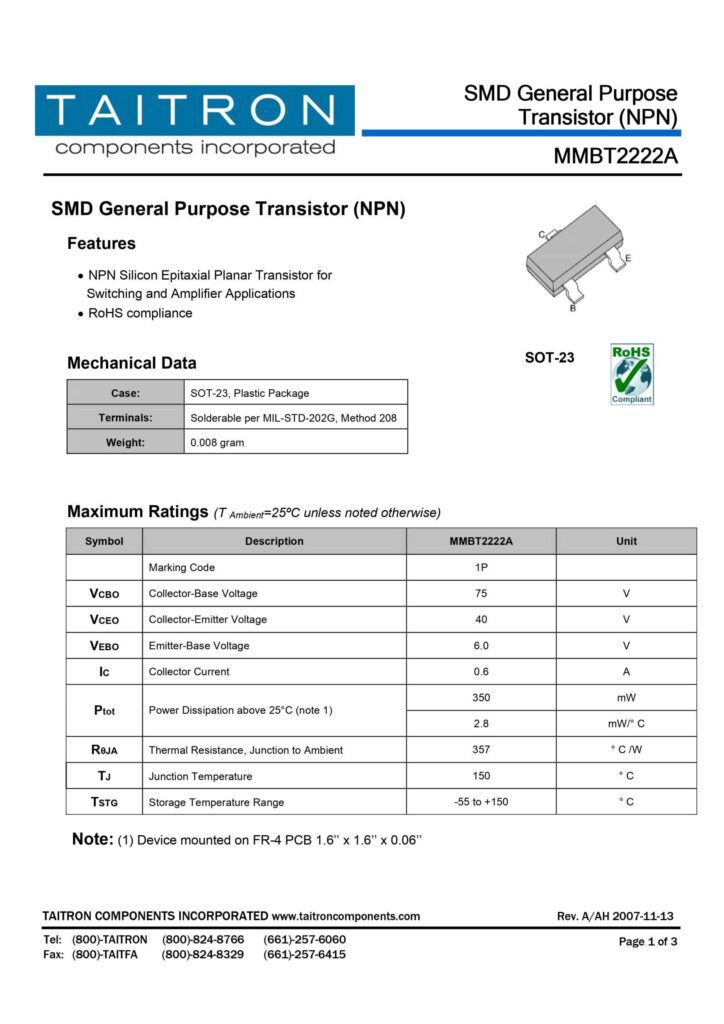

Engineered for durability, the MMBT2222A switching transistor supports high-speed switching with minimal power loss, making it a crucial component in energy-efficient systems. Check the MMBT2222A datasheet for electrical characteristics, voltage ratings, and thermal performance details.
In a solar inverter, the MMBT 2222A helps convert DC power from solar panels into AC power by controlling signals. It works efficiently in switching applications, ensuring smooth circuit performance. Though not for high-power use, it plays an important role in power management and efficiency.
Features
- High current (max. 600 mA)
- Low voltage (max. 40 V).
- Absolute maximum ratings ( Ta=25°C )
- Collector to Base Voltage : Vcbo = 75 V
- Collector to Emitter Voltage : Vceo = 40 V
- Emitter to Base Voltage : Vebo = 6 V
- Collector Current : Ic = 600 mA
- Total Dissipation : Pc = 250 mW
- Junction Temperature : Tj = 150°C
- Storage Temperatue : Tsg = -65 ~ +150°C
Applications
- Switching and linear amplification.
