LM339 QUAD DIFFERENTIAL COMPARATOR SOD-14

LM339 QUAD DIFFERENTIAL COMPARATOR SOD-14

The LM339 comparator is a high-performance quad differential comparator designed for precision voltage sensing and signal processing. Encased in an LM339 SOD-14 package, it offers excellent electrical performance with low power consumption, making it ideal for energy-efficient applications. This low-power comparator LM 339 operates with a wide voltage range and provides accurate comparisons, ensuring reliable operation in critical power management systems. Widely used in solar inverters, it enhances efficiency by monitoring voltage levels and enabling stable power regulation, preventing fluctuations that could impact system performance.

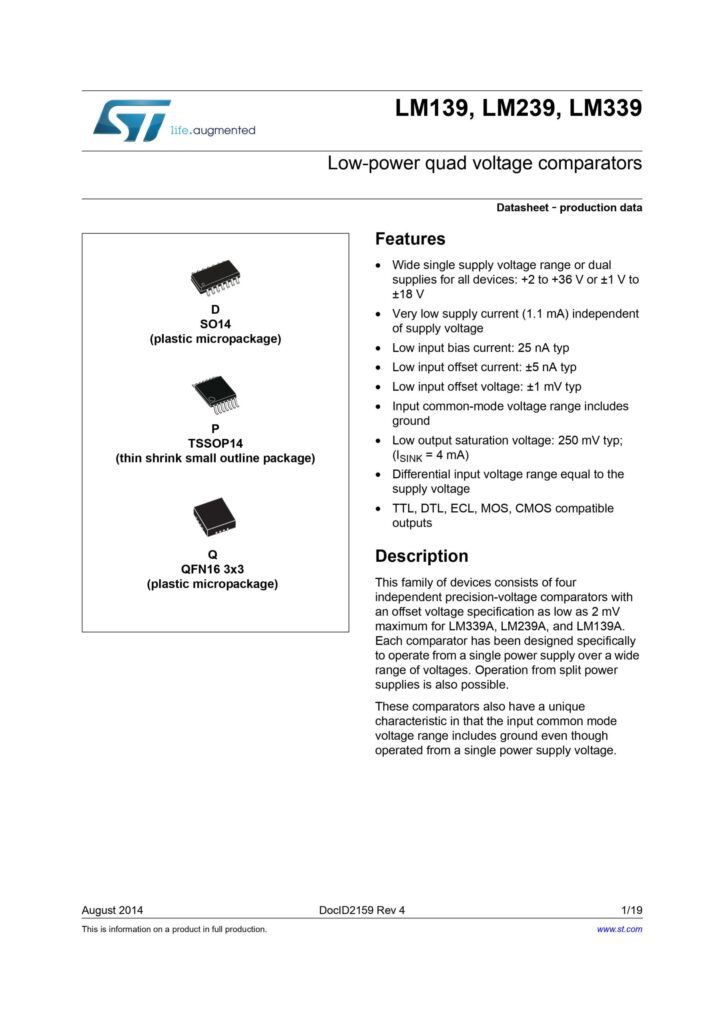

Optimized for stability and durability, the LM339 for solar inverter plays a crucial role in power control circuits. Its precision voltage comparator capabilities allow for high-speed and accurate decision-making, essential for renewable energy applications. The compact LM 339 SOD-14 package ensures easy integration into circuit designs, improving overall system efficiency. For detailed specifications and application guidelines, refer to the LM339 datasheet, which provides essential electrical characteristics and performance insights. Whether used in industrial automation or solar power systems, the LM 339 comparator ensures reliable and efficient voltage monitoring for superior power management.

Specifications:

• Model: LM 339
• Type: Quad Differential Comparator
• Package: SMD SOP-14
• Supply Voltage: 2V to 36V
• Offset Voltage: ≤2mV (typical)
• Output Type: Open Collector
• Response Time: 1.3µs (typical)
• Low Power Consumption: 0.25mA per comparator
• Operating Temperature: -40°C to +85°C
