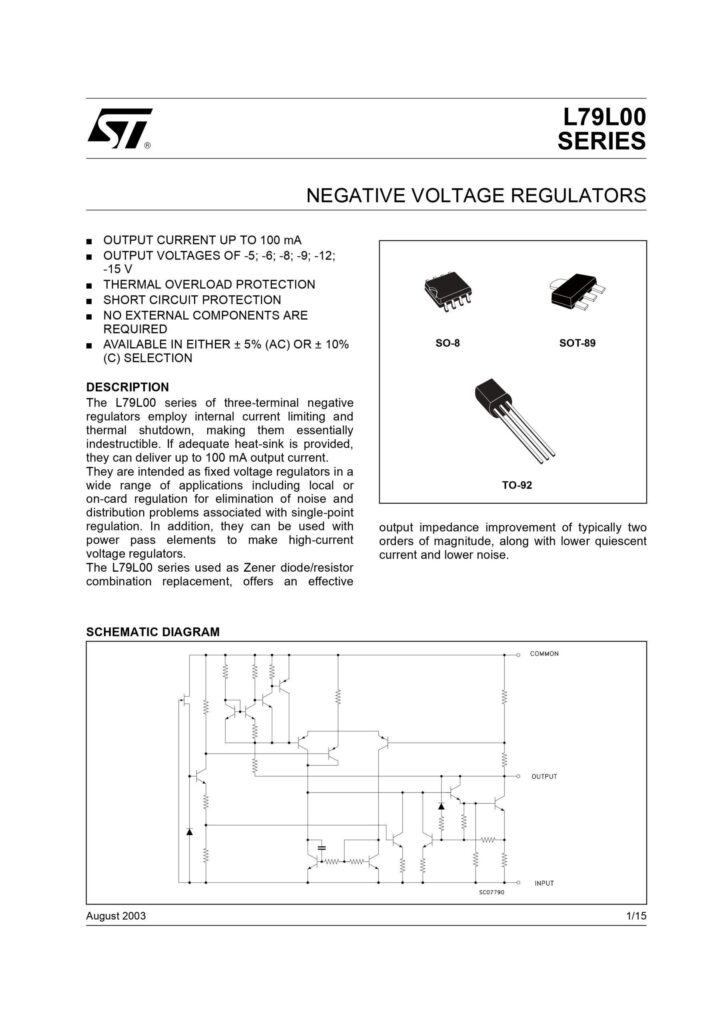

L79L08 100mA NEGATIVE VOLTAGE REGULATOR TO92
reliable negative voltage regulation. Featuring internal current limiting and thermal shutdown protection, the L79L08 100mA ensures safe and dependable operation under various conditions. It is perfect for local on-card regulation, eliminating noise and distribution issues associated with single-point regulation. The L79L08 VOLTAGE REGULATOR is widely used in automotive, industrial, and consumer electronics for applications such as powering analog circuits, microcontrollers, and other low-power devices. With no external components required, it simplifies circuit design while offering high efficiency and low noise performance.
Key Features
- Fixed -8V Output: Provides a consistent negative voltage for stable power delivery.
- 100mA Output Current: Suitable for low-power applications.
- TO-92 Package: Compact design for space-limited circuit boards.
- Internal Protection: Includes thermal shutdown and current limiting for enhanced reliability.
- Low Noise Operation: Ideal for noise-sensitive applications like audio circuits.
- No External Components Needed: Simplifies design and reduces costs.
- Wide Application Range: Perfect for automotive, industrial, and consumer electronics.
Specifications
- Output Voltage: -8V
- Output Current: Up to 100mA
- Input Voltage Range: -10V to -30V
- Package: TO-92
- Operating Temperature: -40°C to 125°C
- Line Regulation: 24mV (typical)
- Load Regulation: 10mV (typical)
- Quiescent Current: 3.5mA (typical)
- Ripple Rejection: 68dB (typical)
Key Features
| Maximum Efficiency | 99% |
|---|---|
| Maximum DC Input Voltage | 500V |
| Maximum AC Output Power | 3200W |
| Protection Rating | IP21 |
| Communication Interfaces | RS485, Wi-Fi |
| Warranty | 1 Years |
| Price | 0 |
