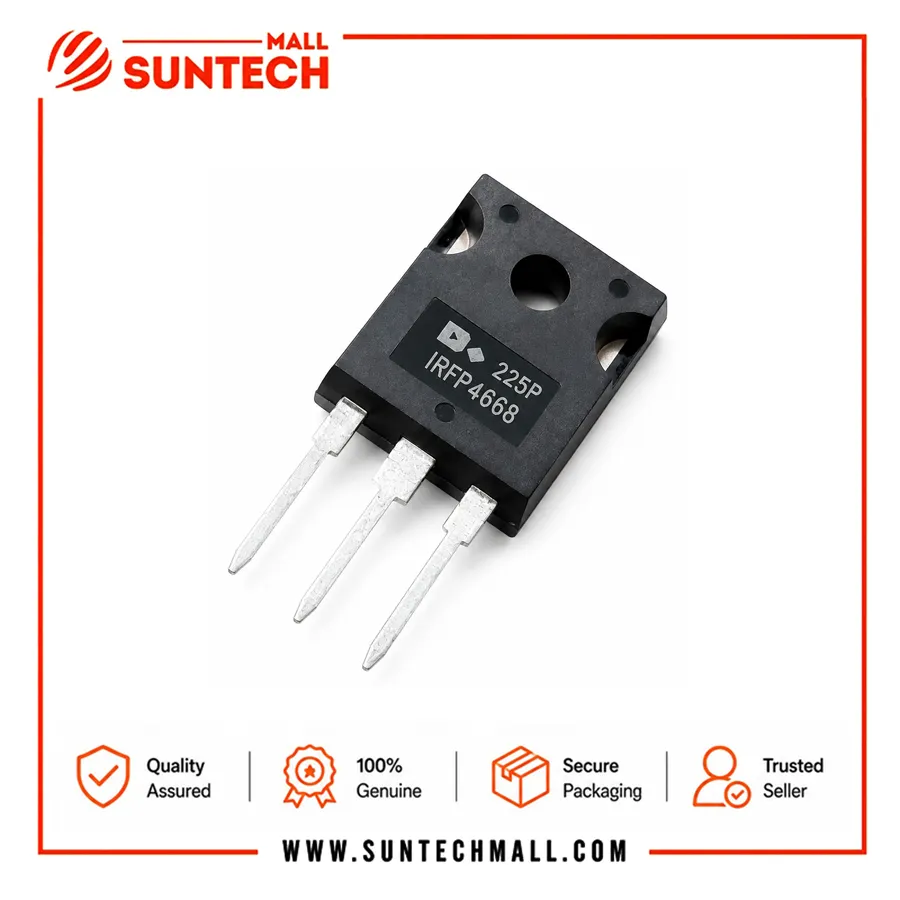

IRFP 4668 N Channel Mosfet To-247
Rs440
Description
IRFP 4668: If your board needs a 200V 130A MOSFET that switches fast with very low loss, and the old part on the board is marked IRFP4668, this is the part to order. It is a single N-channel MOSFET TO-247 part in a large through-hole body, built for heavy-duty switching work. It fits solar inverters, UPS systems, switching power supplies, motor control, and DC to DC converters where a 200V 130A MOSFET must carry large current without wasting power as heat.
It does not fit jobs that need more than 200 V, more than 130 A of steady current at a cool case, a different body, or a P-channel part. Check the checks below before you order, so the voltage, the current, the gate drive, the cooling, and the body all match your board.
This is an original, high-quality part.
What it does
A MOSFET is a switch that a gate signal turns on and off, and that then carries large current on its main path with very low loss when it is on. This IRFP4668 part holds up to 200 V when off, carries 130 A steady at a 25 °C case (92 A at a 100 °C case), and shows only 9.7 mΩ of on-resistance at most — so at high current it drops little voltage and wastes little power as heat.
That low RDS(on) MOSFET behaviour is what makes it fit synchronous rectification MOSFET work in SMPS, where the switch replaces a diode to cut loss, and hard-switched high-frequency circuits where speed and ruggedness both matter.
Its built-in body diode carries up to 130 A steady and recovers in 130 ns typical, with strong avalanche ruggedness (760 mJ single-pulse) for inductive loads. It is not an IGBT: it needs a proper MOSFET gate drive (10 V for full turn-on) and it must never be driven like a logic-level part or an IGBT.
Key features
- 200 V drain-source voltage limit
- 130 A steady drain current at 25 °C case (92 A at 100 °C case)
- Very low on-resistance: 9.7 mΩ at most at 10 V gate, 81 A
- Fast switching: 41 ns turn-on delay, 64 ns turn-off delay at 130 V, 81 A
- High power handling: 520 W at 25 °C case
- Strong pulse limit: 520 A pulsed drain current
- Body diode: 130 A steady, 130 ns typical recovery
- Single-pulse avalanche energy: 760 mJ
- Gate charge: 161 nC typical at 81 A
- Large TO-247AC through-hole body for good heat handling
- Wide temperature range: −55 °C to +175 °C
Checks before you order
- Part number: the body must show IRFP4668. If your old part shows a different number, order that part instead.
- Device type: your board must need an N-channel MOSFET, not a P-channel part and not an IGBT.
- Package: your board must take a TO-247AC body with three leads through holes. Measure the pin spacing and the body size against your old part.
- Voltage: the drain-source voltage on your circuit must stay at or below 200 V, with margin, and the gate-source voltage must stay inside ±30 V.
- Current and heat: the steady current must stay at or below 130 A at a 25 °C case — the 130 A figure drops to 92 A at a 100 °C case, so check the derating for your real cooling. Work out the heat from your real current and the on-resistance (up to 9.7 mΩ) and keep the total power inside the 520 W limit at a 25 °C case, with a heatsink and airflow that fit the job.
- Gate drive: drive the gate at 10 V for full turn-on, and check the threshold (3.0 V to 5.0 V) against your driver. A weak gate drive leaves the part half on, and it will run hot.
- Fit for the job: if your board needs a different voltage or current class, that is a different part — a 150V TO-247 MOSFET on another page is a different rating, not a swap for this one. Match the voltage, the current, the gate drive, and the body first.
- Pin layout: the pins are Gate, Drain, Source in order, with the metal tab joined to the Drain. Fit the new part exactly the way the old part sat, and check the lead layout against the datasheet figure for this part before you solder. A MOSFET put in with the wrong leads will not work and can fail at once.
Specifications
All figures below are for the IRFP4668 part at +25 °C unless noted. No figure here was guessed.
| Type | Single N-channel HEXFET power MOSFET, enhancement mode |
| Package | TO-247AC, 3 leads, through-hole |
| Orderable part / body | IRFP4668PbF |
| Drain-source breakdown voltage | 200 V |
| Continuous drain current | 130 A at 25 °C case, 10 V gate; 92 A at 100 °C case |
| Pulsed drain current | 520 A |
| Power dissipation | 520 W at 25 °C case |
| On-resistance, typ / max | 8.0 mΩ / 9.7 mΩ at 10 V gate, 81 A |
| Gate threshold voltage | 3.0 V to 5.0 V |
| Gate-source voltage | ±30 V |
| Total gate charge, typ / max | 161 nC / 241 nC at 81 A |
| Switching, typ (130 V, 81 A, 2.7 Ω gate, 10 V gate) | Turn-on delay 41 ns; rise 105 ns; turn-off delay 64 ns; fall 74 ns |
| Input capacitance, typ | 10720 pF at 50 V, 1 MHz |
| Body diode continuous current | 130 A |
| Body diode forward voltage, max | 1.3 V at 81 A, 25 °C |
| Body diode recovery time, typ | 130 ns at 25 °C; 155 ns at 125 °C |
| Single-pulse avalanche energy | 760 mJ |
| Thermal resistance, junction to case, max | 0.29 °C/W |
| Operating and storage temperature | −55 °C to +175 °C |
| Pin order | Gate, Drain, Source — tab joined to the Drain |
Other names for the same part (good to know)
Shoppers and repair techs call this same part by a few names. IRFP4668 is the part number, and IRFP4668PbF is the full orderable code for the lead-free TO-247AC part. 200V 130A MOSFET is the plain name from its two headline limits. N-channel MOSFET TO-247 is the name buyers use for its type and its body. Low RDS(on) MOSFET is the name buyers use when they need the very low on-resistance.
Synchronous rectification MOSFET is the job name buyers use when they need it for high-efficiency SMPS work. If you see IRFP4668 on a large TO-247 body, and your circuit needs 200 V at 130 A with a low-loss N-channel switch, this page is the right match. Do not judge by the body size alone — check the part number and the limits too.
Frequently Asked Questions
What does low RDS(on) mean for this MOSFET?
It means the switch drops very little voltage when it is on — 9.7 mΩ at most for this part — so at high current it wastes little power as heat. That is why this part fits heavy-duty switching and synchronous rectification work.
What voltage and current can this part handle?
It handles up to 200 V drain-source and up to 130 A of steady drain current at a 25 °C case (92 A at a 100 °C case), with short pulses up to 520 A and total power up to 520 W at a 25 °C case. Stay inside all of those limits at the same time, and derate the current as the case gets hotter.
Can I use an IGBT in place of this MOSFET?
No. A MOSFET and an IGBT switch in different ways and need different gate drives, even when they share the same body. Match the device type from your board list, not just the body size.
What gate voltage does this part need?
Drive the gate at 10 V for full turn-on. The gate threshold sits between 3.0 V and 5.0 V, and the gate must never go past ±30 V.
Which way round does this part go?
The pins are Gate, Drain, Source in order, with the metal tab joined to the Drain. Fit it exactly the way the old part sat, and check the lead layout against the datasheet figure for this part before you solder.
What is the price of this part?
Check the live price on the website.
Use note kept from the old page: this part was listed before as a powerful N-channel MOSFET for high voltage and high current work, handling up to 200 V and 130 A for heavy-duty circuits, in a TO-247 package that is easy to install and common in power electronics, built for fast switching and low power loss so devices run more efficiently and produce less heat, commonly used in solar inverters, UPS systems, switching power supplies (SMPS), motor control circuits, DC to DC converters, and high-power electronic projects, a strong and reliable choice for large electrical loads — and that use still stands.

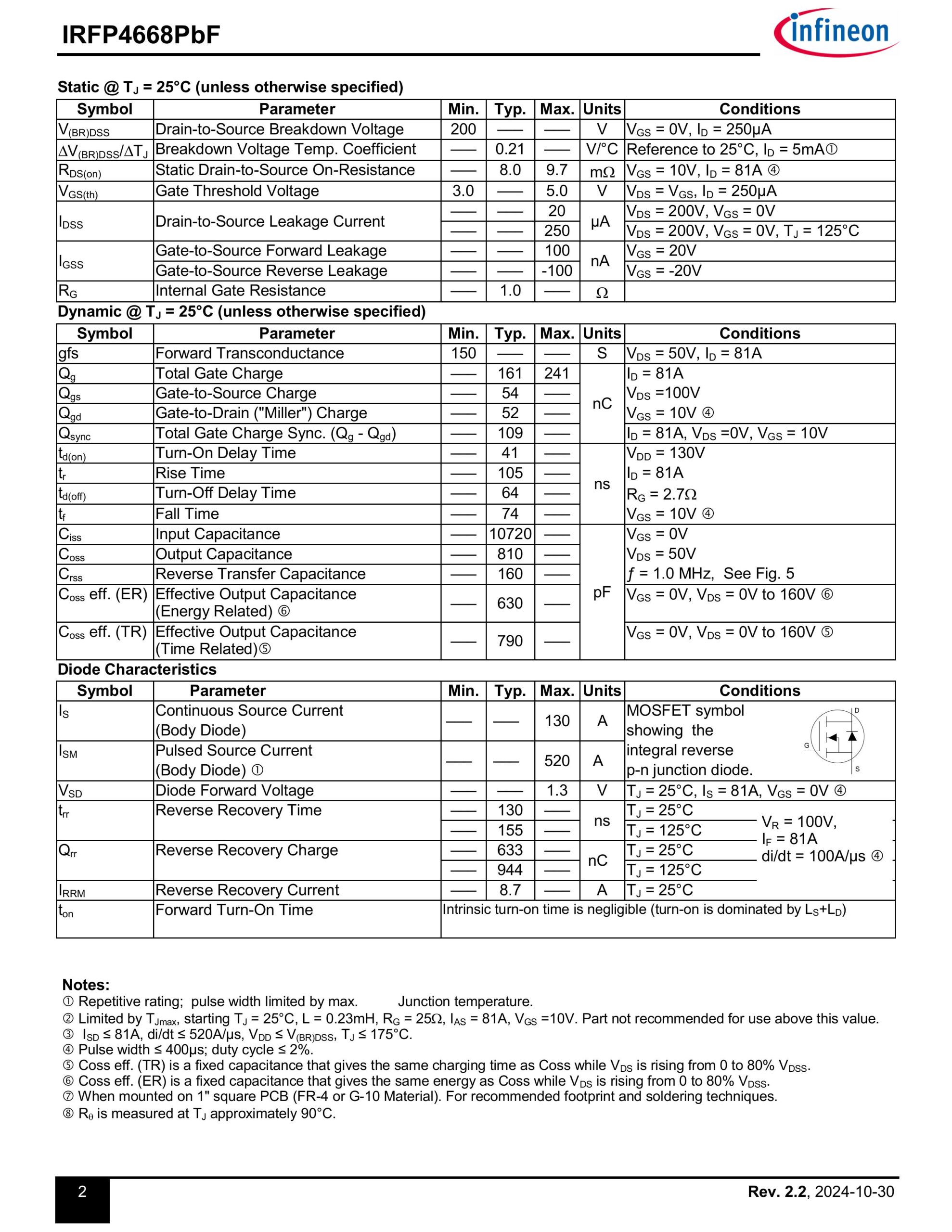

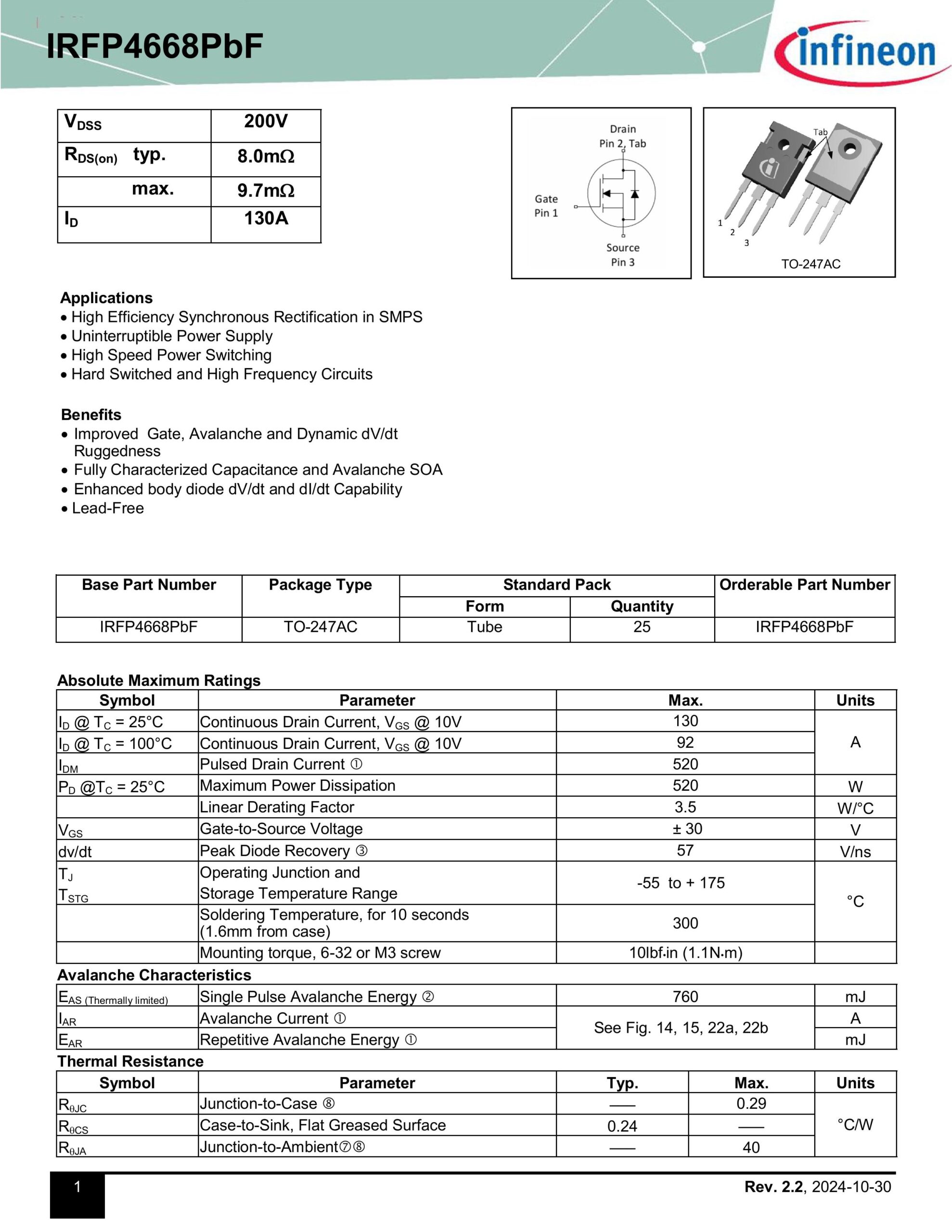

You can view and download the datasheet for this part from the Download button on this page.
