1N6A10 1000V 6A RECTIFIER DIODE R-6

1N6A10 1000V 6A RECTIFIER DIODE R-6

The 1N6A10 diode is a high-performance 1000V rectifier diode designed for efficient power conversion in solar inverters and other high-voltage applications. With a 6A rectifier diode current rating, it ensures reliable operation in demanding environments. The R-6 rectifier diode package provides excellent thermal management, making it an ideal choice for power supply circuits and energy-efficient designs.

Engineered for durability and efficiency, the 1N6A10 for solar inverter applications guarantees minimal power loss with its fast recovery rectifier technology. Its high-voltage rectifier diode capability enhances system stability, reducing the risk of voltage spikes. This 1N6A10 datasheet component is perfect for rectification in solar power setups, offering high-speed performance and robust reliability. Whether used in renewable energy systems or industrial electronics, the 1N6A10 diode ensures optimal power regulation with minimal energy waste, making it a cost-effective solution for high-voltage applications.

This Rectifier Diode is a high-power diode designed for efficient AC to DC conversion in power supplies, inverters, and other electronic circuits. It supports up to 1000V and 6A, ensuring strong and reliable performance in high-voltage applications. The R-6 package allows for easy installation and better heat dissipation, making it perfect for industrial, and repair projects.

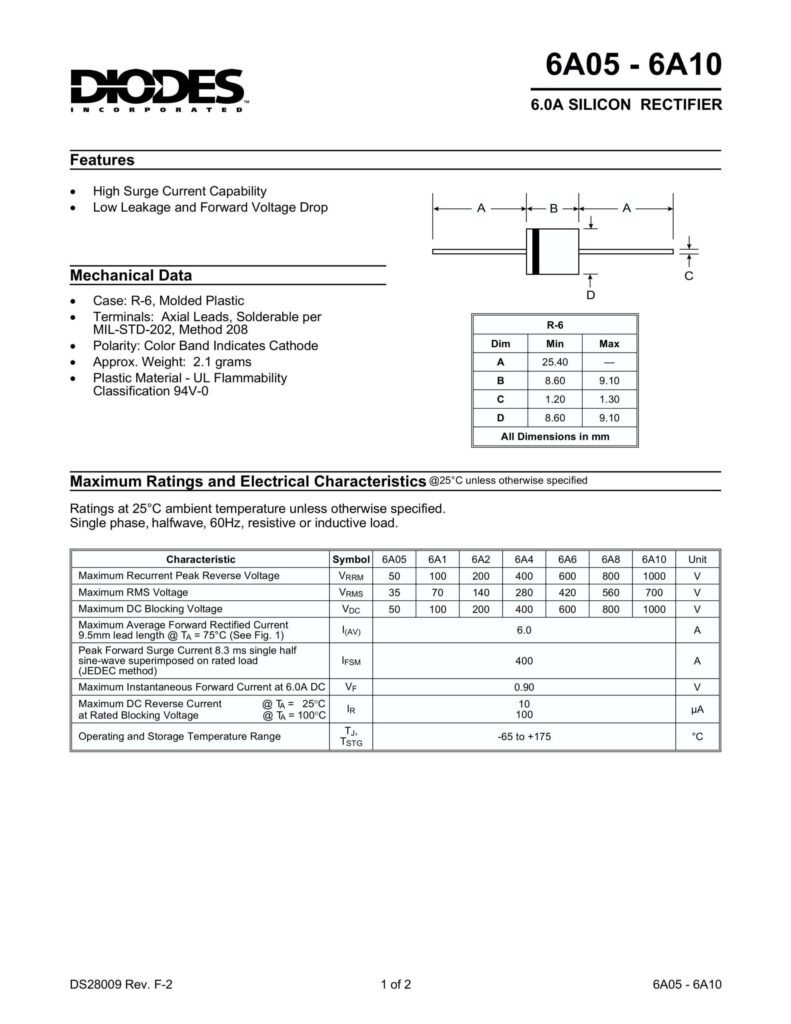

Features

• High Surge Current Capability
• Low Leakage and Forward Voltage Drop

Mechanical Data

• Case: R-6, Molded Plastic
• Terminals: Axial Leads, Solder able per MIL-STD-202, Method 208
• Polarity: Color Band Indicates Cathode
• Approx. Weight: 2.1 grams
• Plastic Material – UL Flammability Classification 94V-0
