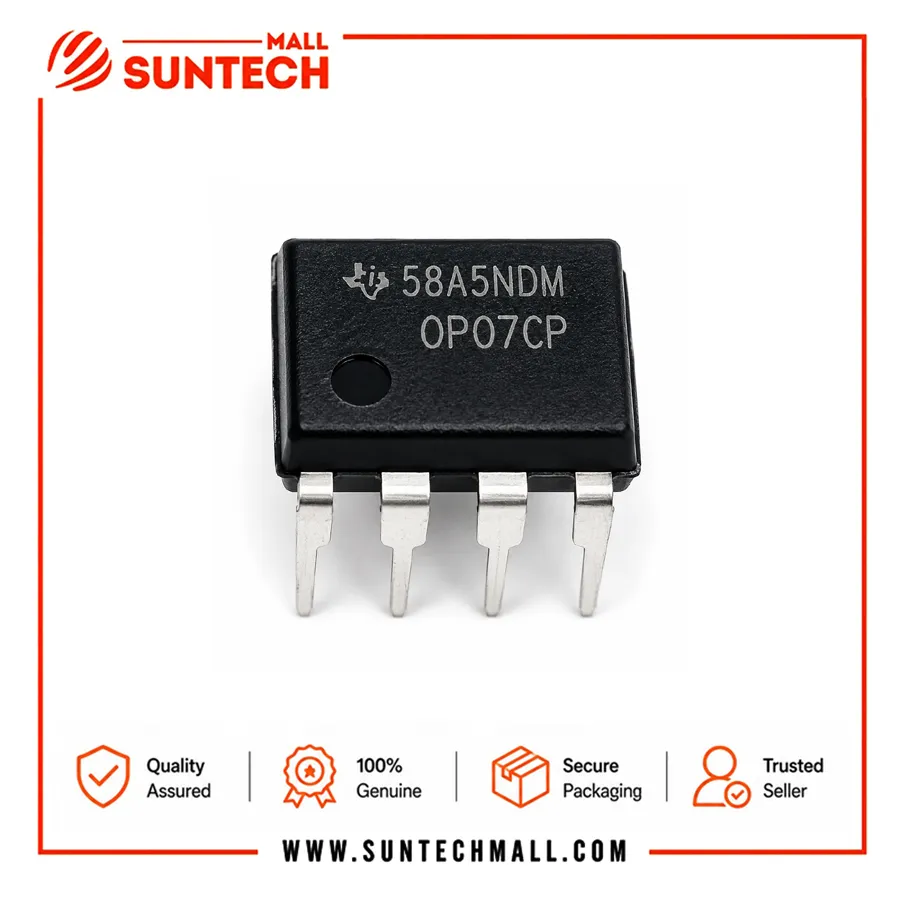

OP07 ULRTA LOW OFFSET OPERATIONAL AMPLIFIER DIP-8

OP07 ULRTA LOW OFFSET OPERATIONAL AMPLIFIER DIP-8

OP07 Operational Amplifier in an 8-pin DIP package is a precision-engineered component designed for high-accuracy applications. Renowned for its ultralow input offset voltage of 75 µV (maximum for OP 07E), this op-amp eliminates the need for external nulling in most scenarios. With low input bias current (±4 nA for OP 07E) and a high open-loop gain of 200 V/mV, the OP 07 delivers exceptional linearity and gain accuracy, making it an industry standard for instrumentation, medical, and industrial control systems. Its robust design ensures stability across a wide temperature range and over time, providing reliable performance in demanding environments.

OP07 stands out for its exceptional precision and stability, making it ideal for applications where signal integrity is critical. Its low-noise, chopperless, bipolar-input-transistor design ensures minimal distortion, while the high input impedance and wide input voltage range provide flexibility in noisy environments and non-inverting configurations. Whether you’re designing laboratory instruments or high-gain audio amplifiers, the Op07 Operational Amplifier delivers consistent, high-fidelity performance with minimal calibration.

Key Features:

• Ultralow Offset Voltage: Maximum 75 µV (OP 07E) for precise signal processing.
• High Open-Loop Gain: 200 V/mV ensures excellent accuracy in high-gain configurations.
• Low Input Bias Current: ±4 nA (OP 07E) minimizes signal distortion.
• Wide Input Voltage Range: ±13 V minimum, with a high CMRR of 106 dB for superior noise rejection.
• Temperature Stability: Low offset drift of 1.3 µV/°C and ultrastable performance at 1.5 µV/month.
• Versatile Packaging: Available in 8-pin DIP and SOIC packages, with OP 07E (0°C to 70°C) and OP 07C (-40°C to +85°C) grades.
• No External Nulling Required: Simplifies circuit design and reduces component count.

Technical Specifications:

• Slew Rate: 0.3 V/µs for responsive signal handling.
• Supply Voltage Range: ±3 V to ±18 V, supporting single and dual supply setups.
• Noise Level: Ultra-low noise at 0.6 µV peak-to-peak for pristine signal quality.
• Differential Input Voltage: Up to ±30 V for robust operation.
• Power Consumption: Low power draw of 1.1 mA (typical for OP 07D variant).
