MBR 20200CT 200V 20A SCHOTTKY DIODE TO-220

MBR 20200CT 200V 20A SCHOTTKY DIODE TO-220

The MBR 20200CT diode is a 200V Schottky diode designed for high-efficiency rectification in power applications. With a 20A Schottky rectifier rating, it ensures fast recovery and low forward voltage drop, making it ideal for solar inverters. Its TO-220 Schottky diode package offers excellent thermal performance and reliability, enhancing energy conversion efficiency in solar power systems.

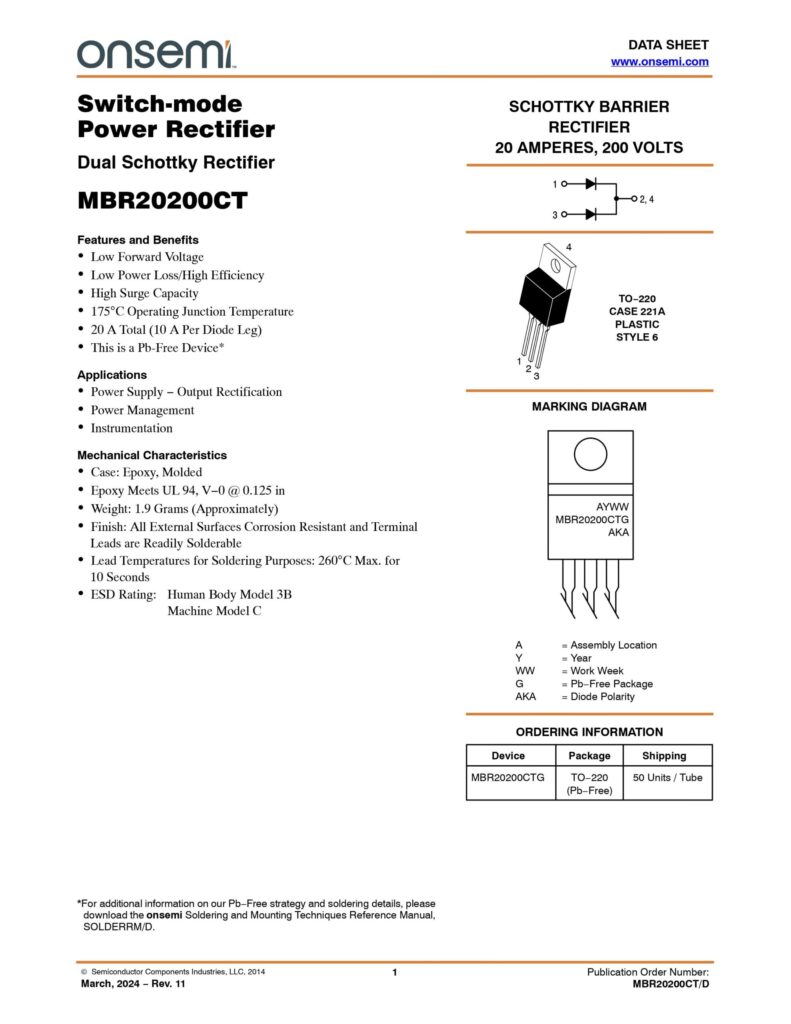

The MBR 20200CT for solar inverter applications delivers superior high-efficiency rectifier diode performance, minimizing power loss and heat dissipation. This fast recovery Schottky diode is perfect for switching power supplies and renewable energy setups. Its robust construction and reliability make it suitable for demanding environments. For detailed specifications, refer to the MBR 20200CT datasheet to optimize circuit design and performance.

Features and Benefits

• Low Forward Voltage
• Low Power Loss/High Efficiency
• High Surge Capacity
• 175°C Operating Junction Temperature
• 20 A Total (10 A Per Diode Leg)
• This is a Pb-Free Device*

Applications

• Power Supply − Output Rectification
• Power Management
• Instrumentation

Mechanical Characteristics

• Case: Epoxy, Molded
• Epoxy Meets UL 94, V−0 @ 0.125 in
• Weight: 1.9 Grams (Approximately)
• Finish: All External Surfaces Corrosion-resistant and Terminal Leads Are Readily Solder able.
• Lead Temperatures for Soldering Purposes: 260°C Max. for 10 Seconds
• ESD Rating: Human Body Model 3B
