LM78L05 30V 100mA POSITIVE VOLTAGE REGULATOR TO-92

LM78L05 30V 100mA POSITIVE VOLTAGE REGULATOR TO 92

The LM78L05 30V 100mA Positive Voltage Regulator TO-92 is a compact and efficient voltage regulator designed to provide a stable 5V output for low-power applications. With a maximum input voltage of 30V and an output current of 100mA, this LM78L05 voltage regulator ensures reliable performance in various electronic circuits, including solar inverters. Its TO-92 package makes it easy to integrate into PCB designs, offering excellent thermal and electrical stability. Ideal for low-power DC regulation, this component helps maintain steady voltage, preventing fluctuations that can damage sensitive electronic components.

The LM78L05 for solar inverters is widely used in power supply circuits, microcontroller applications, and embedded systems. Its 5V positive voltage regulation ensures smooth power delivery for efficient circuit operation. The LM78L05 TO-92 regulator is a cost-effective choice for engineers and hobbyists looking for a compact and durable voltage regulator. With a built-in thermal overload protection and short-circuit protection, it enhances the longevity of solar inverter systems. For further specifications and circuit implementation, refer to the LM78L05 datasheet to optimize performance in your application.

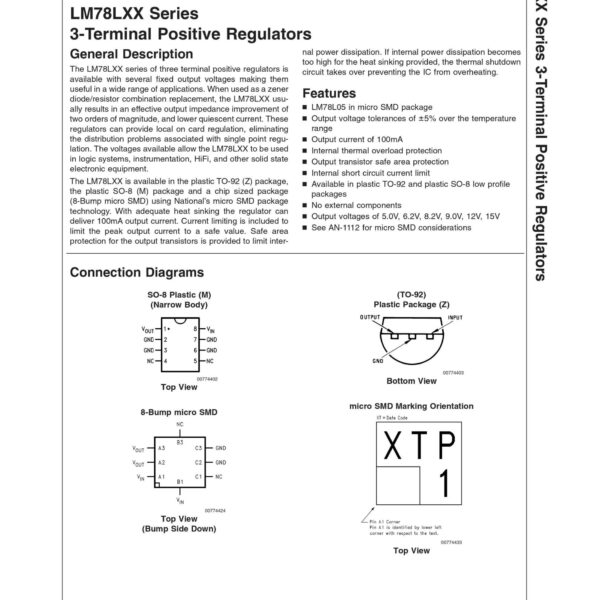

Features

• LM 78L05 in micro SMD package
• Output voltage tolerances of ±5% over the temperature range
• Output current of 100mA
• Internal thermal overload protection
• Output transistor safe area protection
• Internal short circuit current limit
• Available in plastic TO-92 and plastic SO-8 low profile packages
• No external components
• Output voltages of 5.0V, 6.2V, 8.2V, 9.0V, 12V, 15V
• See AN-1112 for micro SMD considerations
