BAT54 30V 200mA KL1 SMD SCHOTTKY DIODE SOT-23

BAT54 30V 200mA KL1 SMD SCHOTTKY DIODE SOT-23

The BAT54 30V 200mA KL1 SMD Schottky Diode in an SOT-23 package is a high-efficiency rectifier designed for fast switching and low forward voltage drop. This BAT54 diode is ideal for solar inverters, ensuring optimal power conversion. Its fast recovery Schottky diode properties enhance efficiency, making it a preferred choice for power management applications.

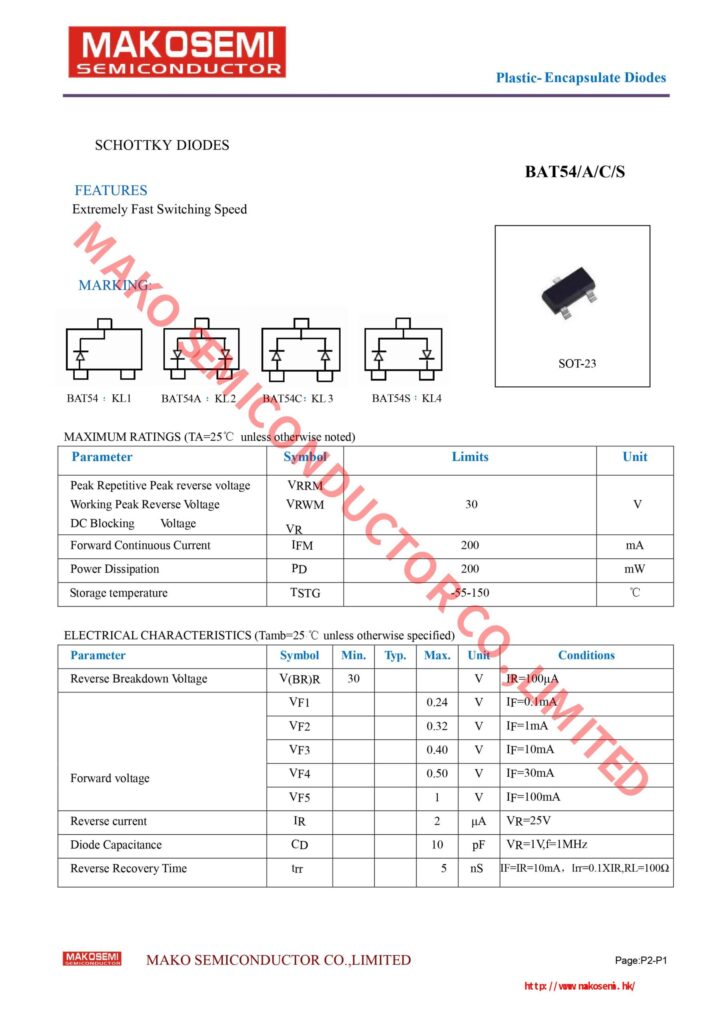

Engineered for high reliability, the BAT54 for solar inverter applications provides superior performance in compact designs. With a 30V Schottky diode rating and 200mA Schottky rectifier capability, it minimizes power loss and improves overall efficiency. The SOT-23 Schottky diode package ensures easy integration into circuit boards. For detailed specifications, refer to the BAT54 datasheet, which includes electrical characteristics and application guidelines.

Schottky Diode is a fast-switching, low voltage drop diode, perfect for solar inverters, power supplies, and energy-efficient circuits. It operates at 30V and 200mA, ensuring efficient performance in low-power applications. The SMD SOT-23 package makes it compact and easy to integrate into modern circuit designs. Ideal for solar energy systems, battery chargers, and other electronic applications.

FEATURES

• These diodes feature very low turn-on voltage and fast switching.
• These devices are protected by a PN junction guard ring against excessive voltage, such as electrostatic discharges.
• AEC-Q101 qualified available.
• Base P/N-E3 – Rosh-compliant, commercial grade.
• Base P/N-HE3 – Rosh-compliant, AEC-Q101 qualified.
• Material categorization: for definitions of compliance.
