2SA1020 PNP TRANSISTOR TO-92
The 2SA1020 PNP transistor is a high-performance, low-power transistor designed for general-purpose applications, including amplification and switching circuits. With its TO-92 package, this transistor is widely used in solar inverters, ensuring efficient power regulation and signal amplification. Its low saturation voltage and high current gain make it an ideal choice for applications requiring stable and reliable performance. The 2SA1020 amplifier transistor is perfect for enhancing weak signals while minimizing power loss.

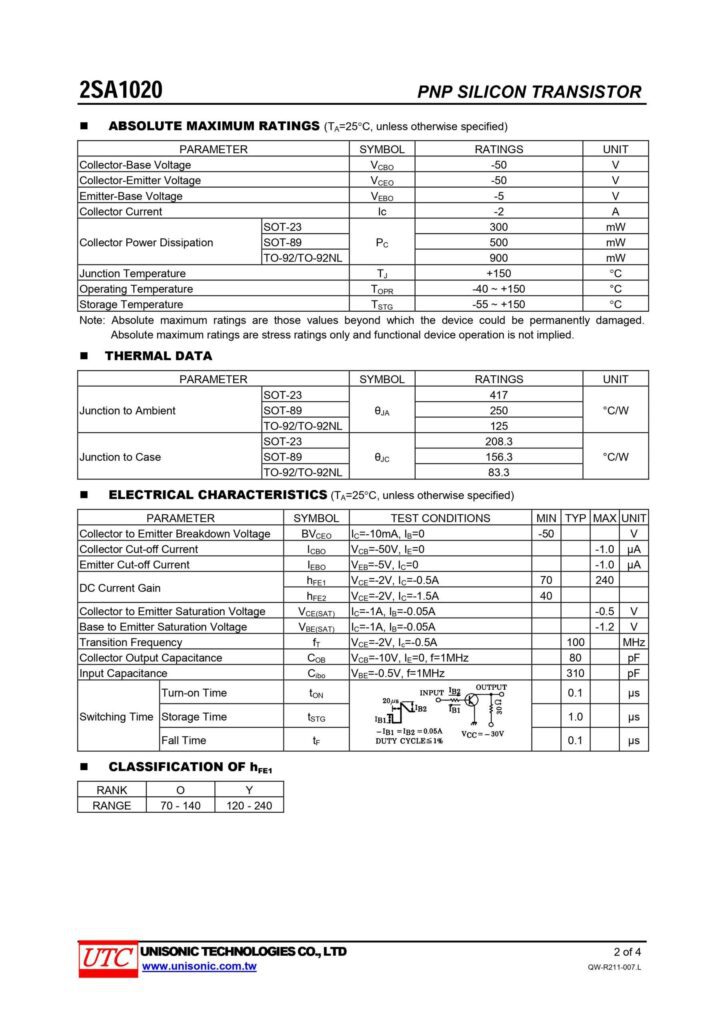

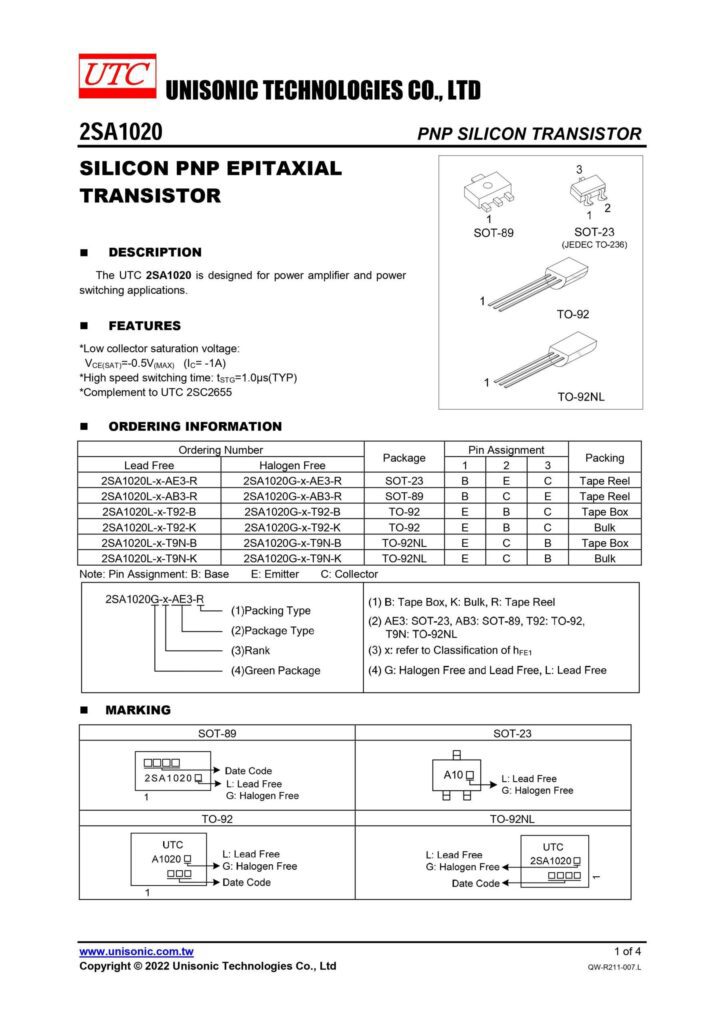

Engineers and hobbyists rely on the 2SA1020 transistor for solar inverters due to its excellent thermal stability and durability. Its compact TO-92 package allows for easy integration into PCB designs. The 2SA1020 datasheet highlights its versatility in handling low to medium power applications, making it suitable for various electronic circuits. Whether used in power management or signal amplification, this PNP transistor TO-92 ensures superior efficiency and long-term reliability in demanding environments.
In a solar inverter, the 2SA 1020 works with other components to convert DC power from solar panels into AC power for home use. It helps regulate voltage and current flow, ensuring smooth operation. Though not for high-power applications, it plays an important role in circuit efficiency.
FEATURES
Low collector saturation voltage: VCE(SAT)=-0.5V(MAX) (IC= -1A)
High speed switching time: tSTG=1.0μs(TYP)
Complement to UTC 2SC2655
Key Features
| Maximum Efficiency | 99% |
|---|---|
| Maximum DC Input Voltage | 500V |
| Maximum AC Output Power | 3200W |
| Protection Rating | IP21 |
| Communication Interfaces | RS485, Wi-Fi |
| Warranty | 1 Years |
| Price | 0 |
